TC10 Access Control
Introduction
TC10 is one of the devices made specifically for the TimeTec HR solution. The device previously used a 5VDC power supply, now has been changed to 12VDC which can act as a 2 in 1 device that can cater attendance record and access control needs for one organization. TC10 is equipped with face recognition for a contact-less attendance recording and as access equipment for security.
For attendance record purposes, TC10 can be connected with a 12VDC male jack connector power supply (provided) and LAN cable for internet connection, TC10 is also equipped with WIFI module for easy Internet connection to allow the device to send all attendance data to TimeTec Attendance.
Below is the TC10 connection diagram for an access control system.

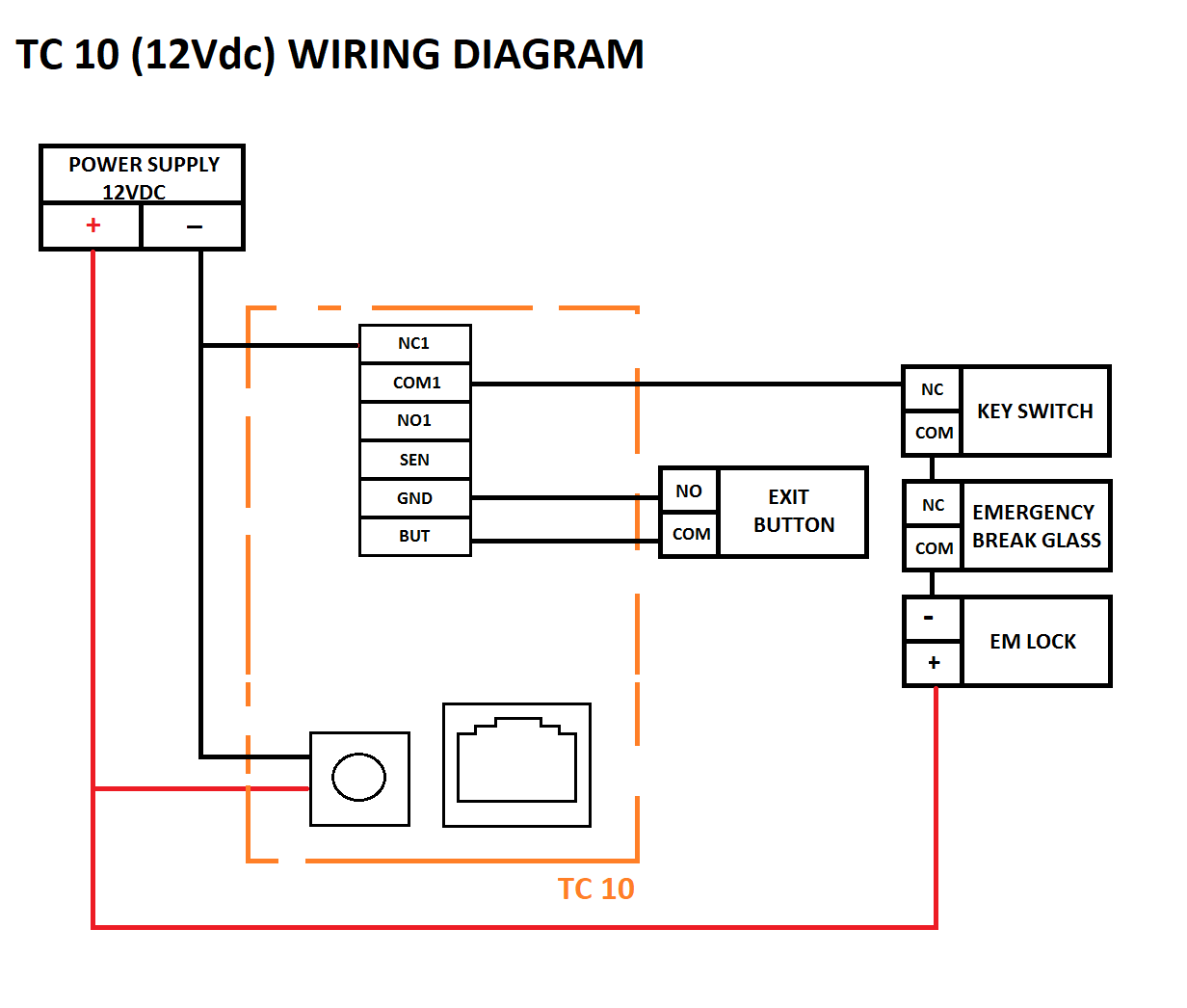

TC10 with 12VDC power supply wiring diagram

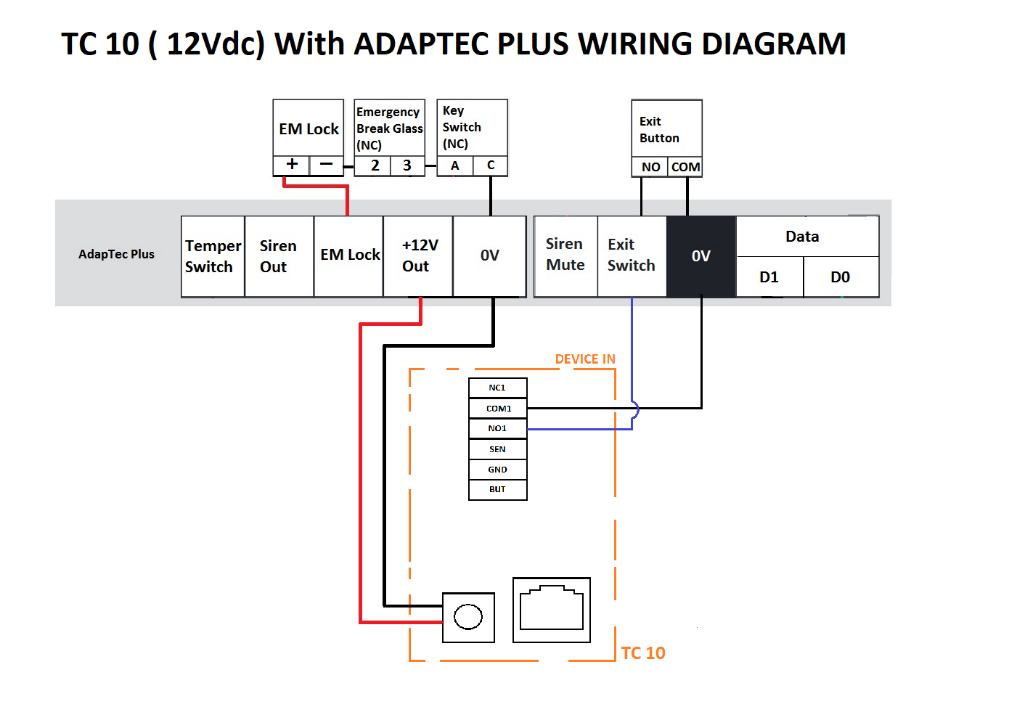

TC10 With Adaptec Plus Wiring Diagram

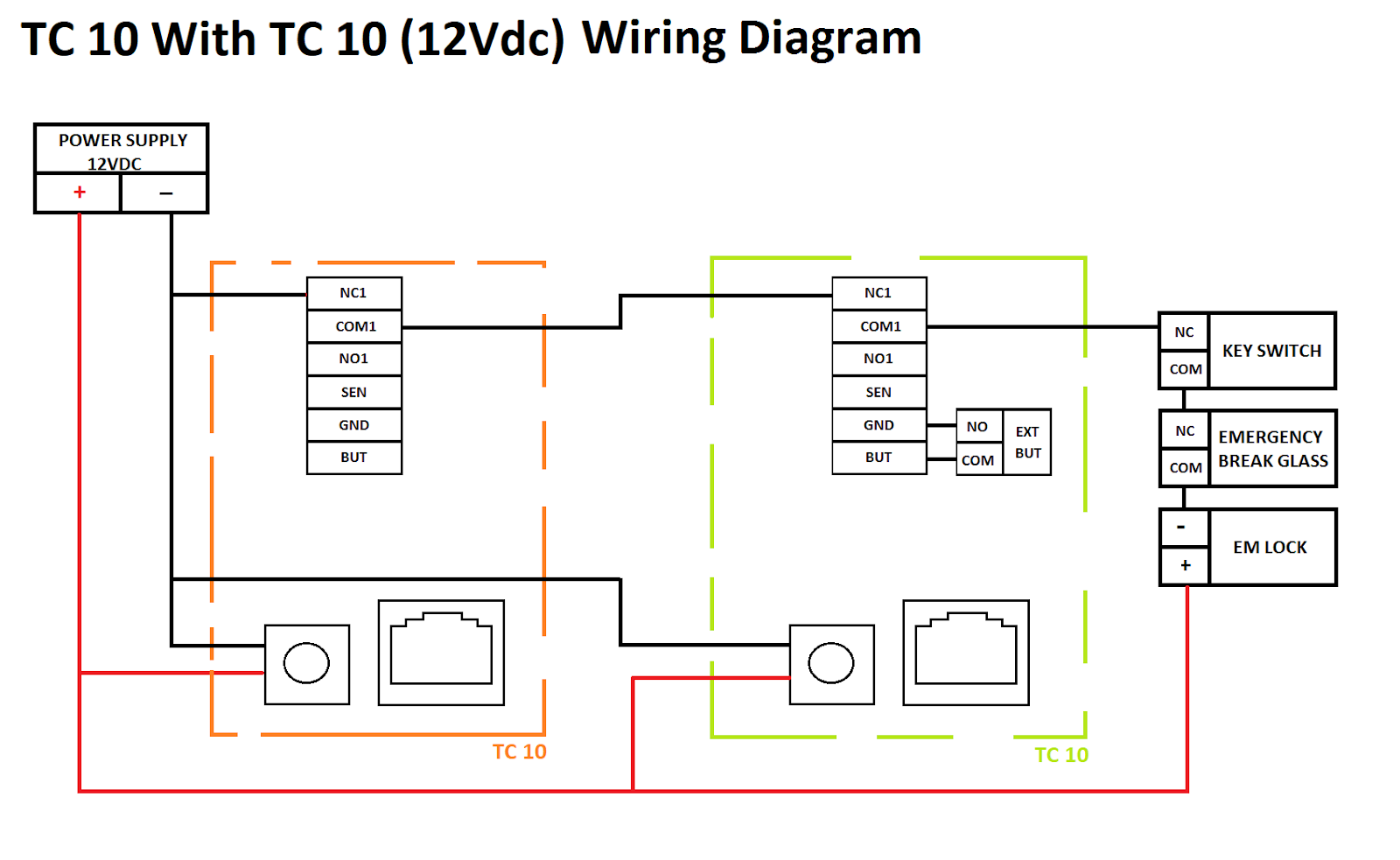

TC10 + TC10 with 12VDC power supply wiring diagram

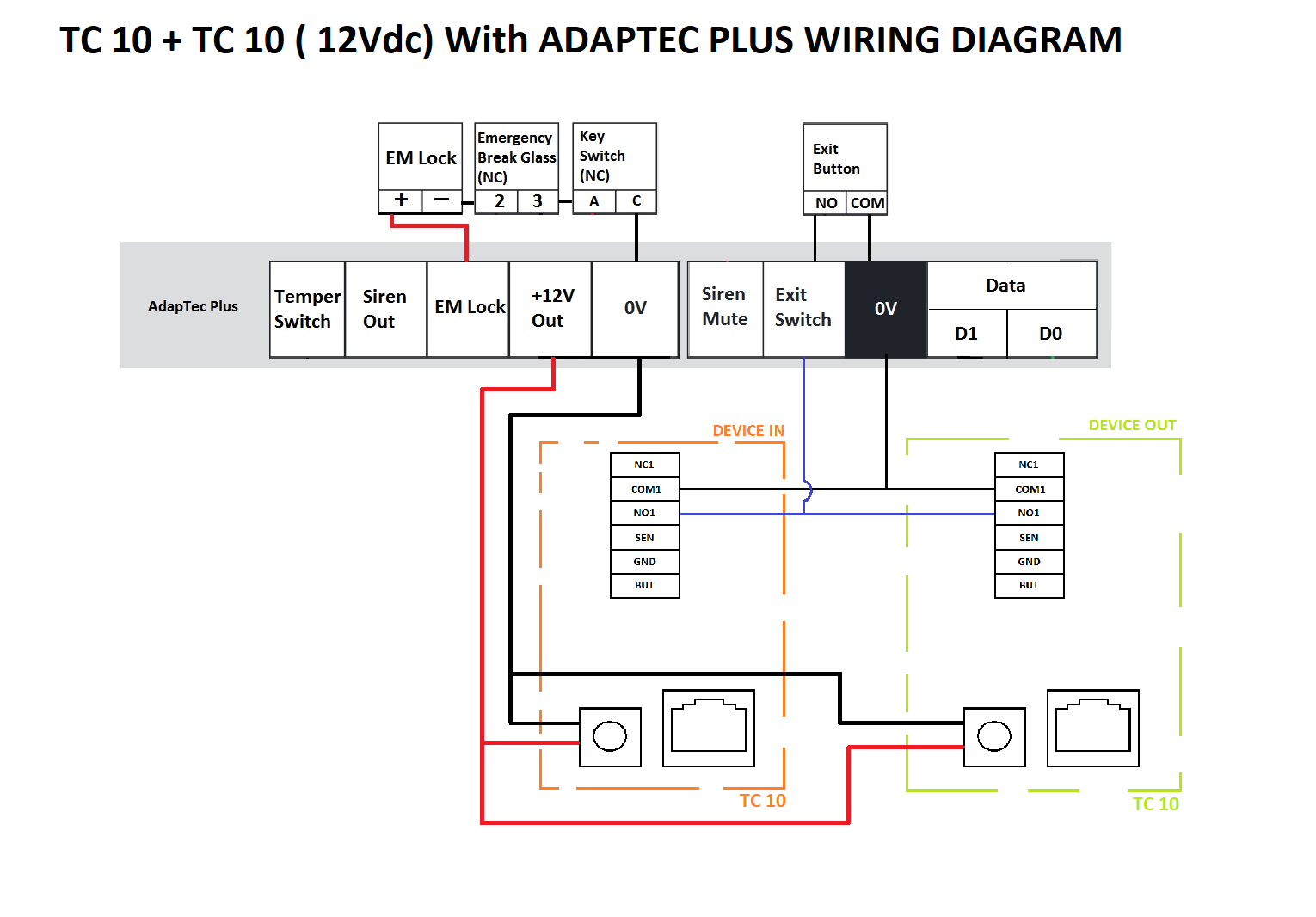

TC10 + TC10 with Adaptec Plus wiring diagram
Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
