Introduction
Face ID 6 is the latest addition to the access control devices, which boasts multiple verification methods including face recognition, card, password and palm verification. This article will guide you on the installation of the Face ID 6 as access control for in and out which will be paired with the Exit button.

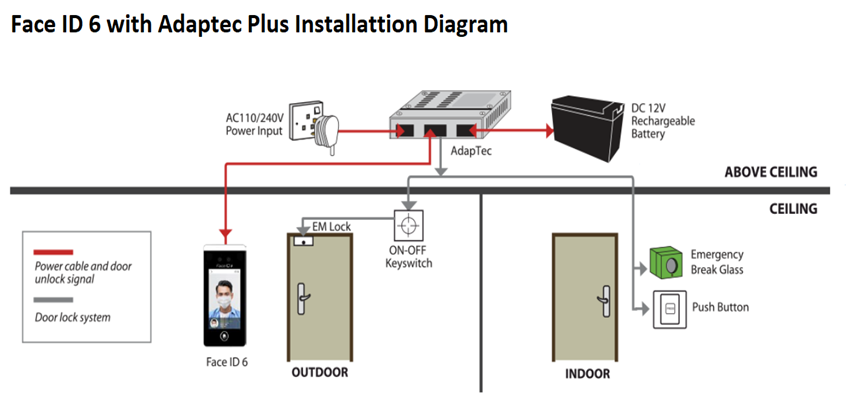

Diagram 1: Installation Diagram of Face ID 6 with AdapTec Plus & Exit button

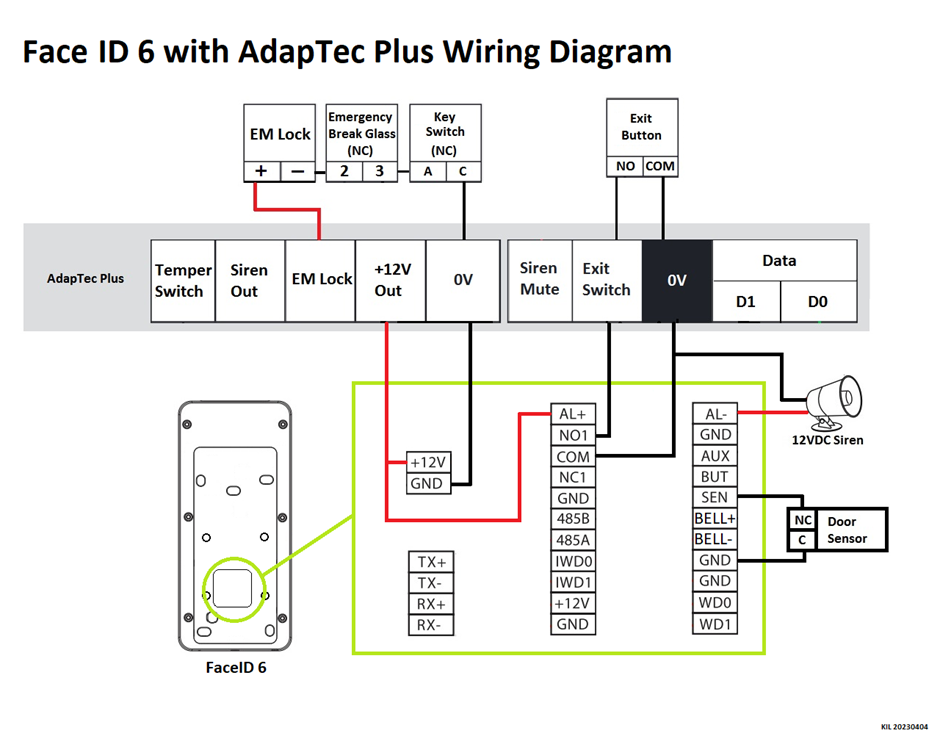

Diagram 2: Wiring Diagram of Face ID 6 with Adaptec Plus & Exit Button

Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
