FACE ID 5 TD / FTD Wiring for Access Control

FACE ID 5 & R3c Wiring Guide for Access Control

Introduction
Face ID5 can be paired with a slave reader to manage both entry and exit access. This guide explains how to configure Face ID5 and R3c as master and slave readers for access control.

*Please state in your inquiries before purchasing the Face ID 5 with Access Push to be compatible with our software.

Process

Diagram 1 : Connection of  Face ID 5 with AdapTec Plus & R3c

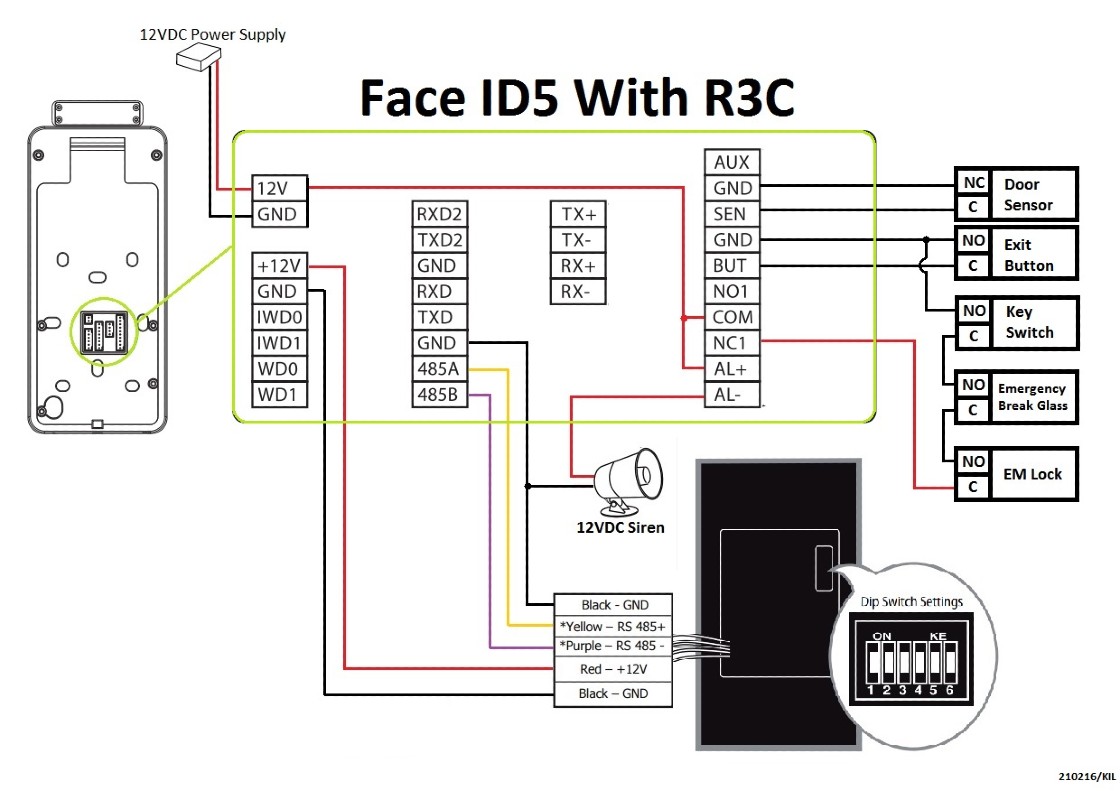

Diagram 2 : Connection of  Face ID 5 with R3c

Face ID 5 settings at the device for Access control

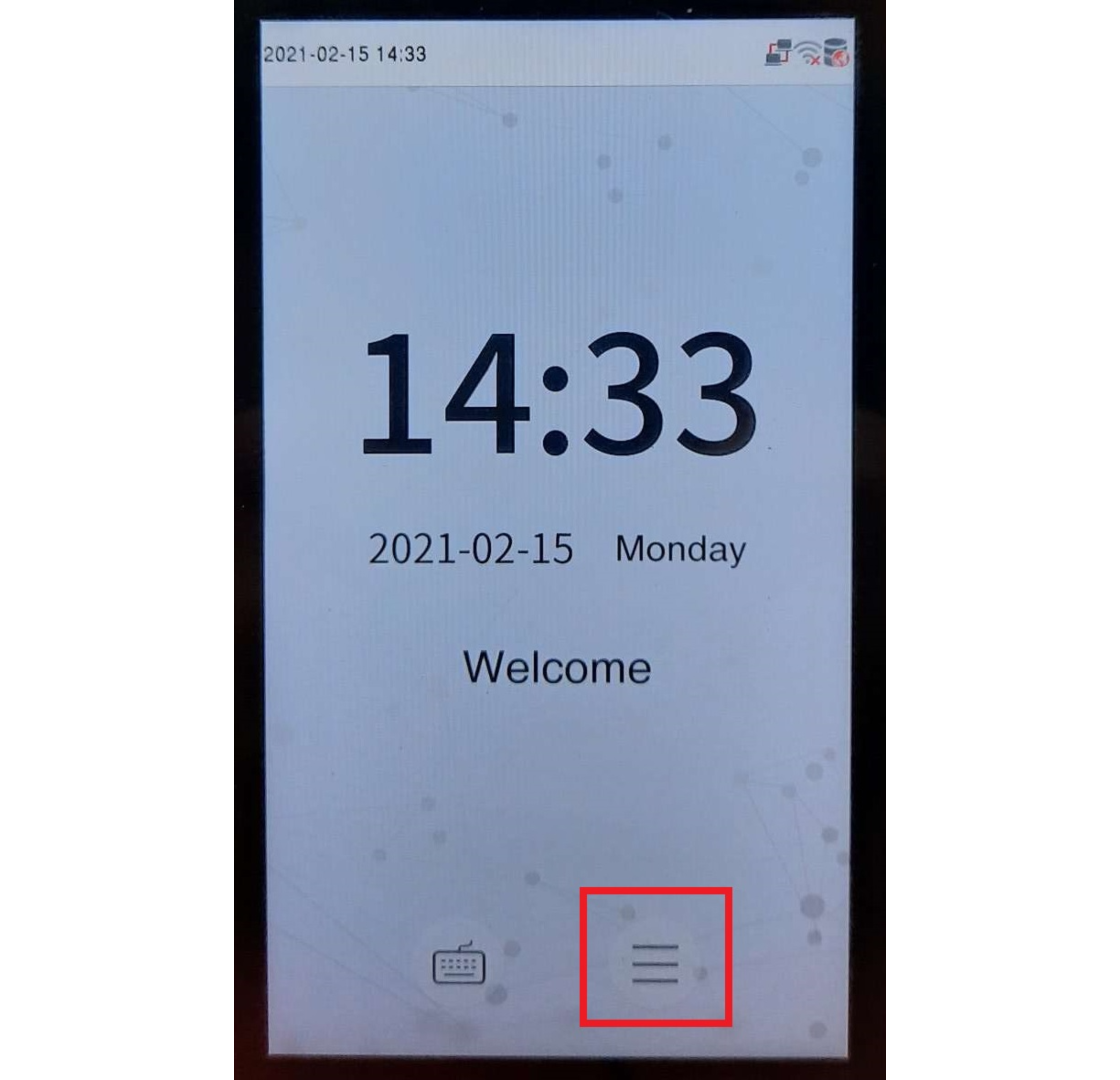

Picture 1 : Press Menu Icon


Picture 2 : Select COMM icon

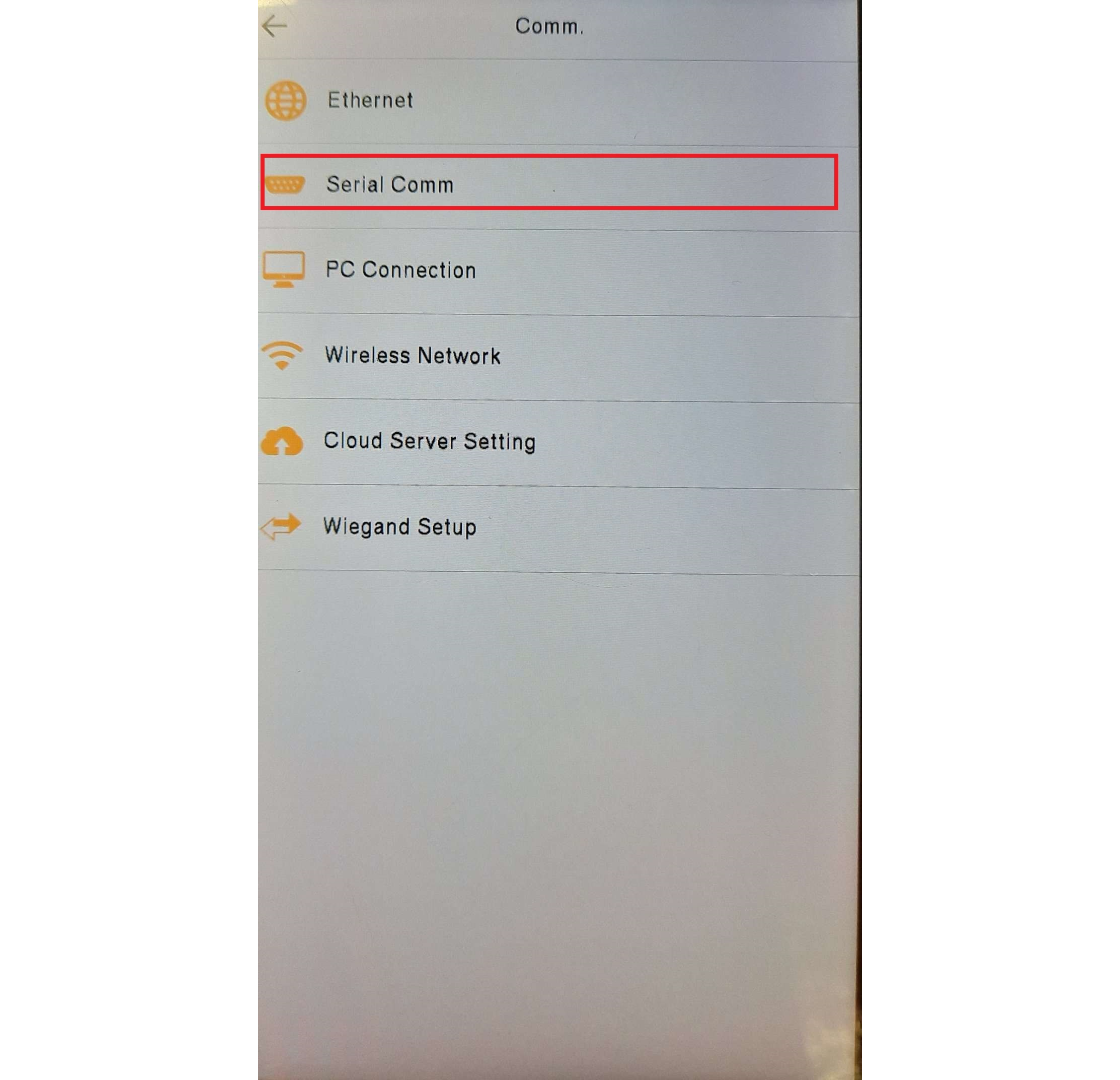

Picture 3 : Select Serial Comm

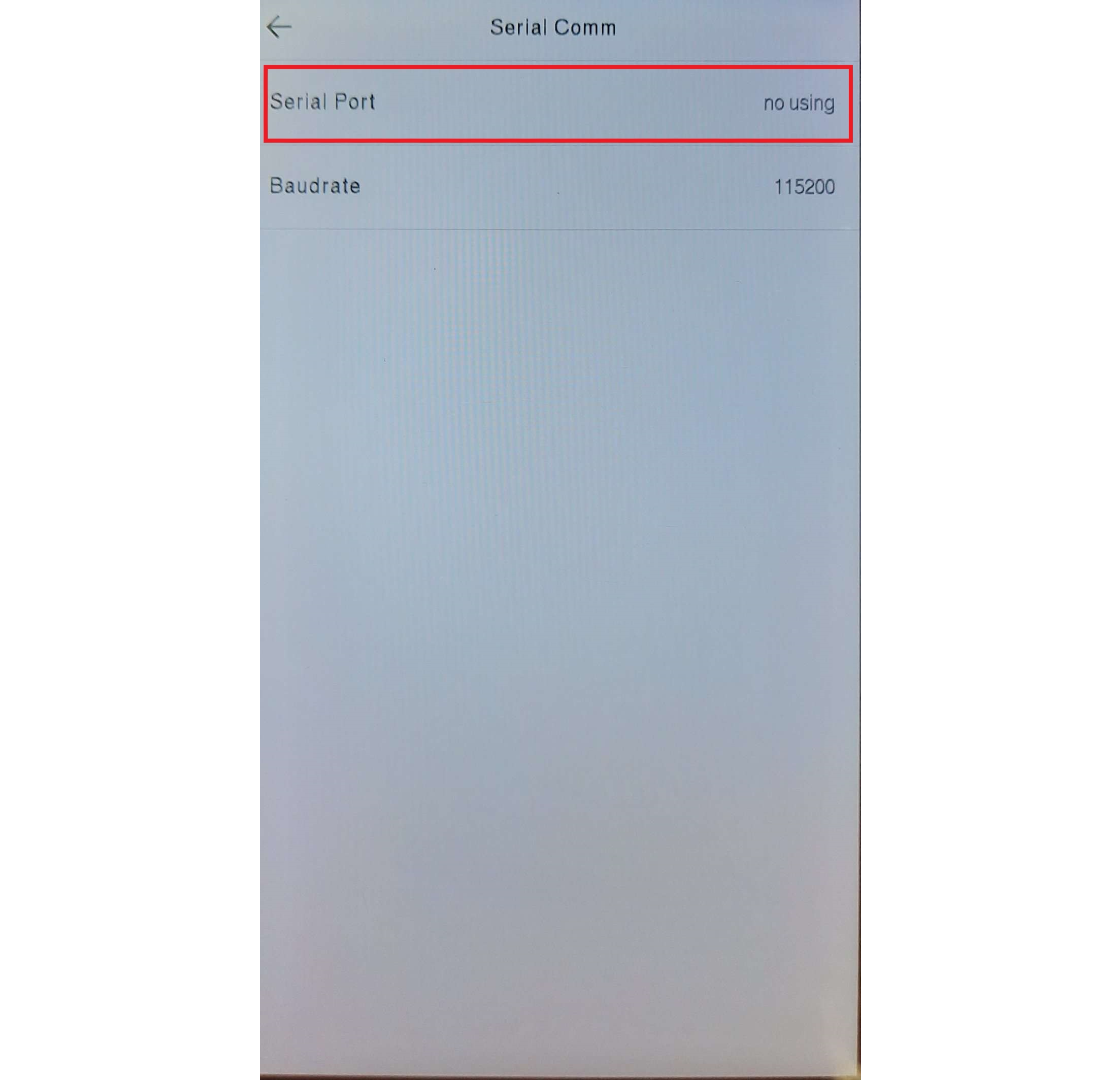

Picture 4 : Select Serial Port

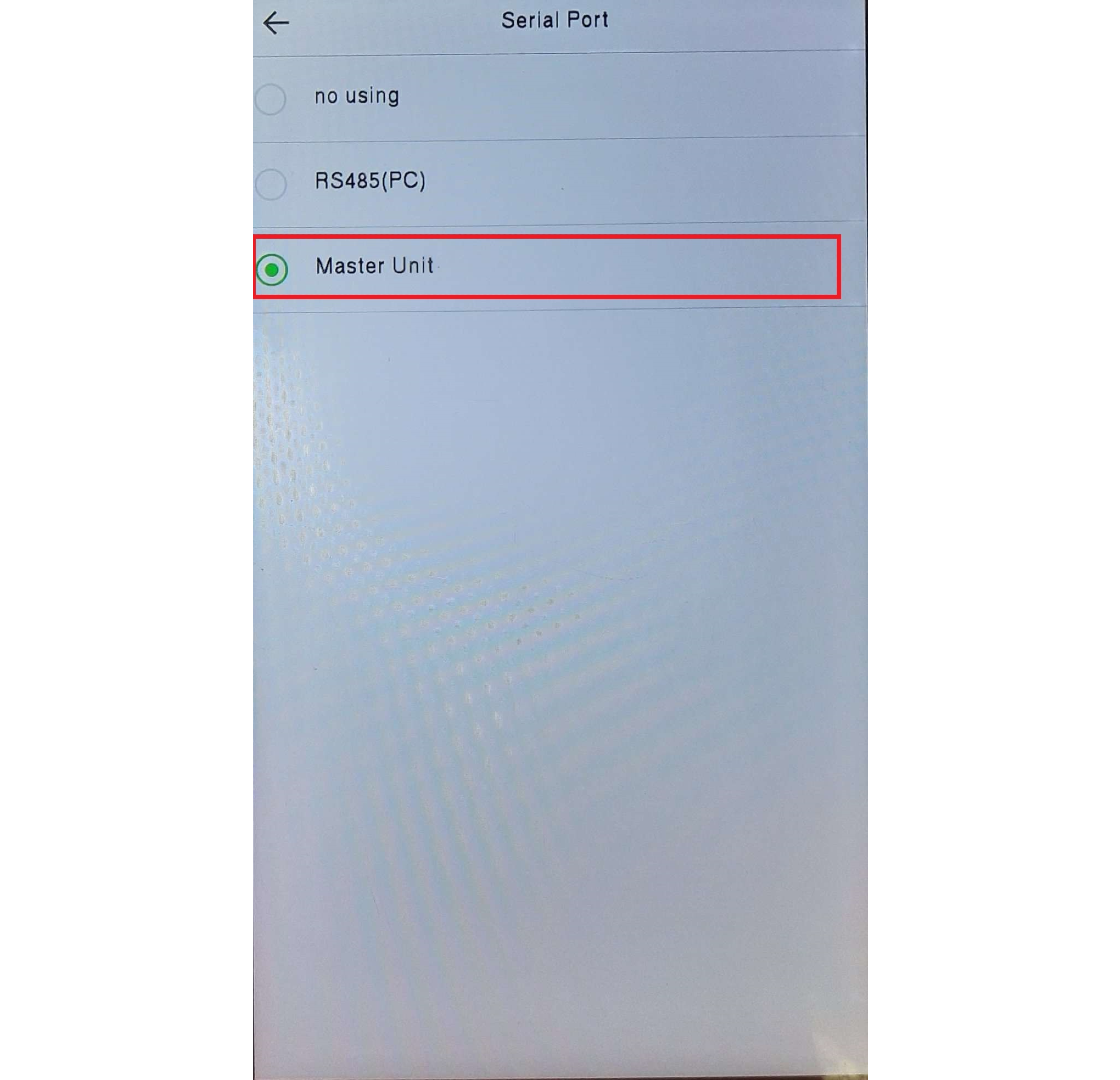

Picture 5 : Select Master Unit

After setting the Face ID 5 as a Master Unit, the IN and OUT for the device need to be set as to determine either the master will act as the IN device or OUT.


Picture 6: Push menu icon


Picture 7 : Select Access Control

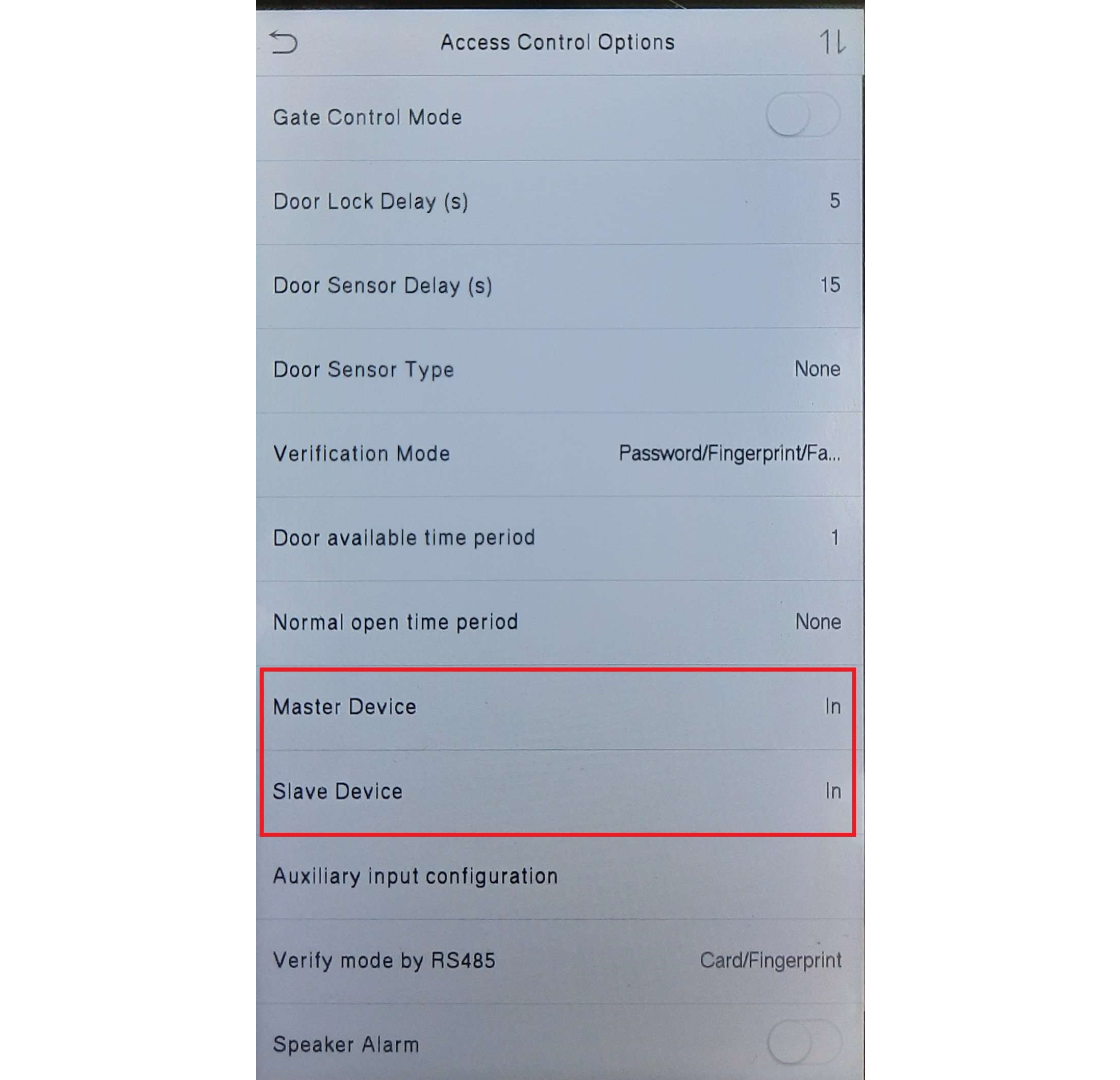

Picture 8: Select the Master device and Slave device for position for ether In or Out


Picture 9 : Master Device select In or Out

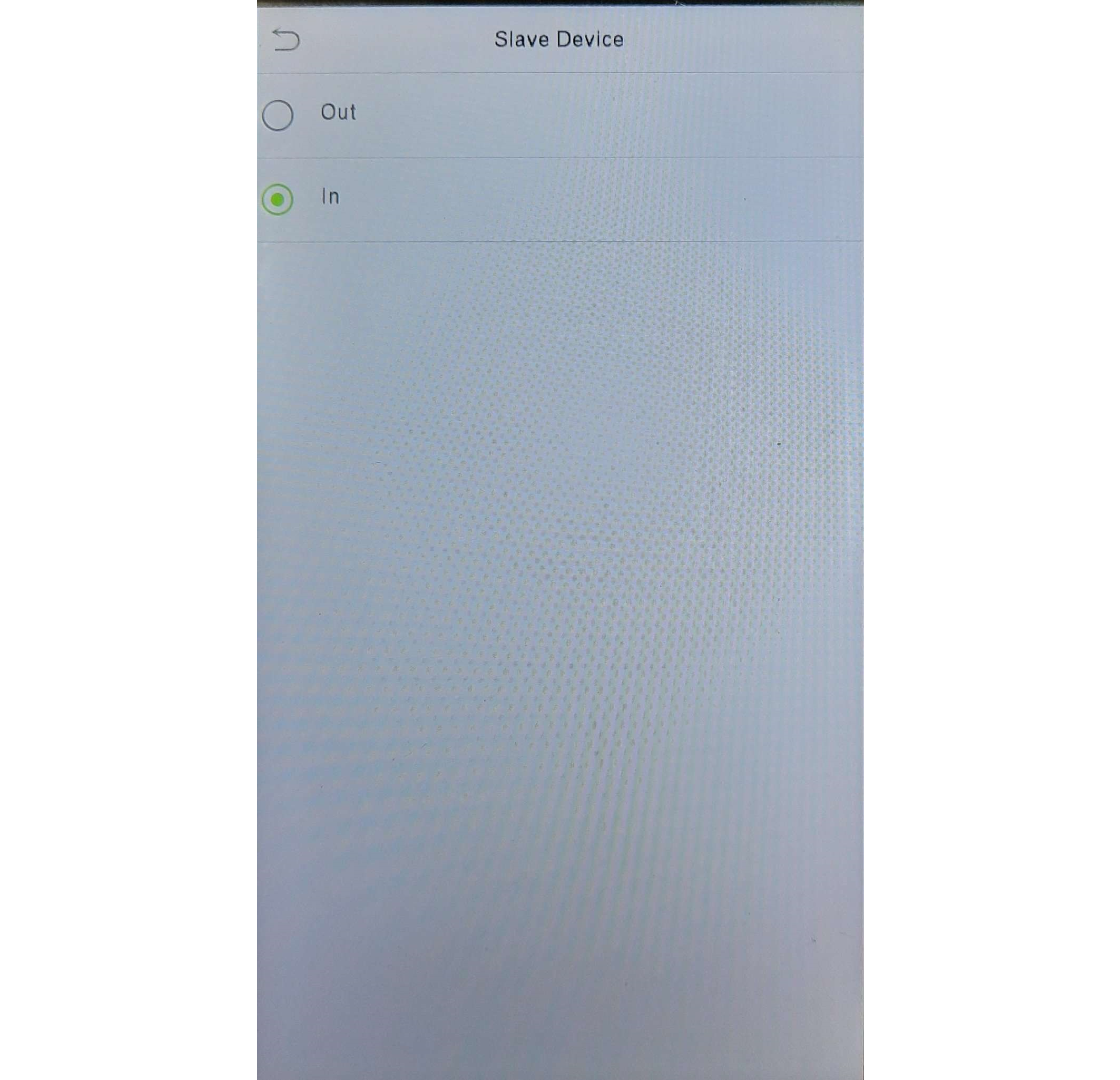

Picture 10 : Slave Device select In or Out

Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@fingertec.com, we will update it as soon as possible.
