How To Setup Ingressus 2 Control Double Leaf Door
Introduction
Some companies use double-leaf doors in their premises or offices as the main entrance. Most of them require a simple system that allows both doors to open simultaneously, making it easier for people to enter and exit the office. In this guide, I’ll share some tips on how to set up the wiring diagram using the Ingressus 2 controller.
Requirement
Ingressus 2 Controller
2 EM Lock
Double Leaf door
2 Power Supply

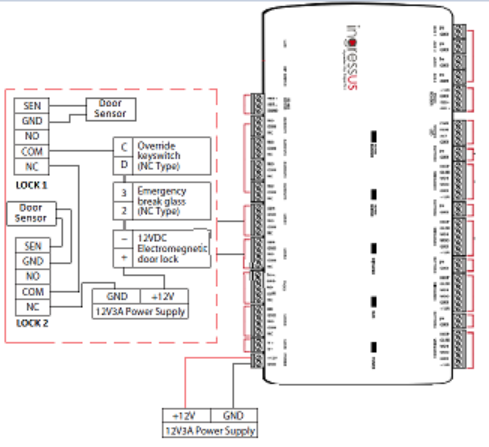

Wiring Diagram
