Introduction

In previous technical tips, we have guided you on how to set it up and we also provide a wiring diagram for the Face ID 5 – Face ID 5 (master-master) connection.

Now, we show you how to set up Face ID 5 – Face ID 5 (master–slave) connection with an anti-passback setup.

Requirement

-          Face ID 5 (master)

-          Face ID 5 (slave)

-          Power Supply 12V

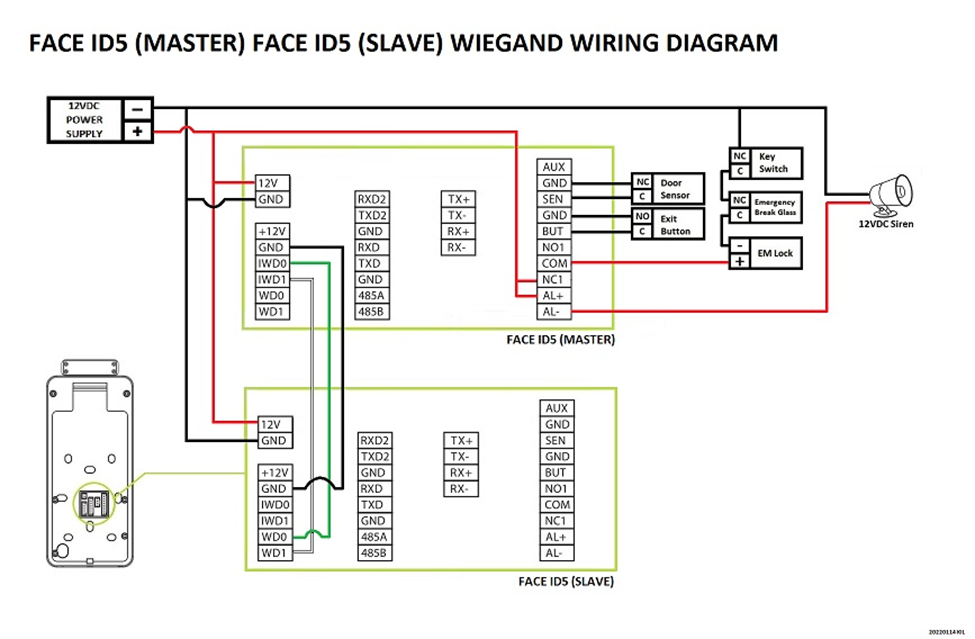

Wiring Diagram





Setting in Face ID 5 Device

-          After you finish the installation by referring to the diagram above, you need to change the settings from the device. Here is the step to change the setting :



Go to MENU – COMM. – Wiegand Setup

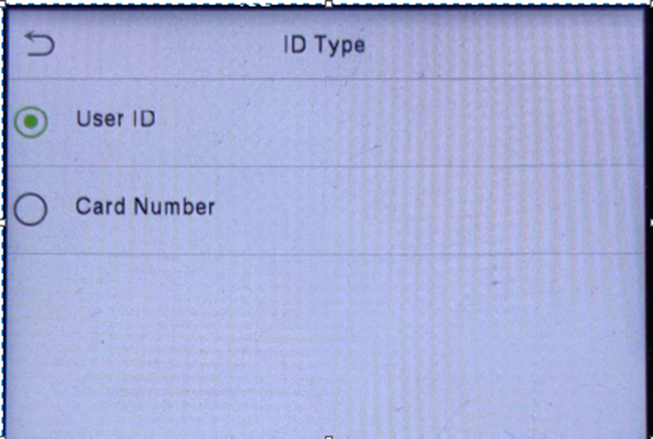

Select Wiegand Input/Output – Select ID Type – Choose User ID







Anti – Passback Setup



-          Go to MENU – Access Control – Access Control Options

-          Both devices must be set to which device is going to be the inside or outside reader





-          After that Go to MENU – Access Control – Anti–Passback Setup – Anti – Passback Direction



Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
