Workcode Setup for TA500 Device

Workcode Setup for TA500 Device


Work codes are designed to streamline and enhance your workforce management experience. Our work code system is your solution to ensure accurate and hassle-free attendance monitoring for your workforce. With work codes, you can monitor attendance in real-time, giving you immediate insights into your workforce’s attendance patterns.

How To Setup

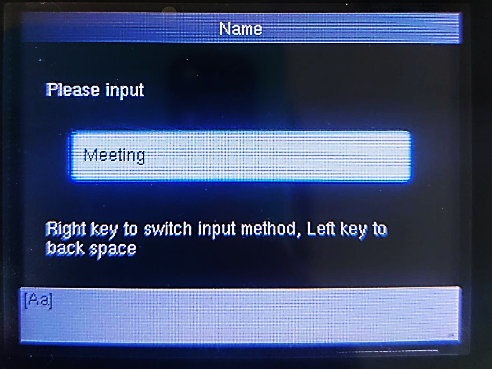

  • First, go to ‘MENU’ – ‘WORK CODE’ – ‘New Work Code’ – Select ‘Name’ – Input your work code name

  • Please make sure the name of the work Code is the same as Fingertec Software.

Two Methods of Selecting Work Code

  1. All users are required to select Work Code after verifying their fingerprint/password/card.

  • Go to MENU – Work Code – Work code options – Turn On ‘Work Code Required’

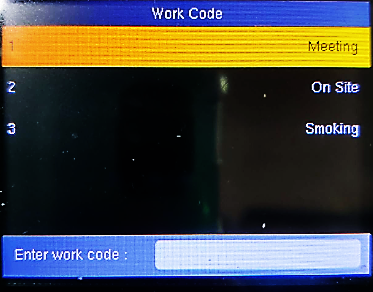

  • After you verify your fingerprint/password/card, the list of Work Codes set on the device will appear.

  • You need to select either one. Otherwise, your attendance will not be recorded.

  1. All users are free to select the Work Code or not after verifying their fingerprint/password/card.

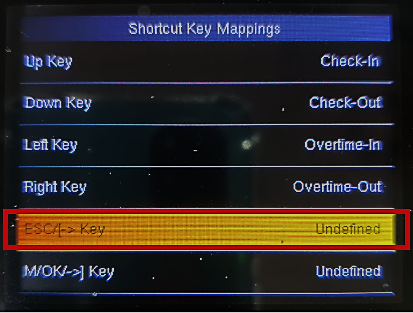

  • Go to MENU – Personalize – Shortcut Key Mappings

  • After that, choose ‘M/OK’ – Search for ‘Work Code’

  • After you’re done with this setup, you can try pressing the ‘ESC’ button on the main screen.

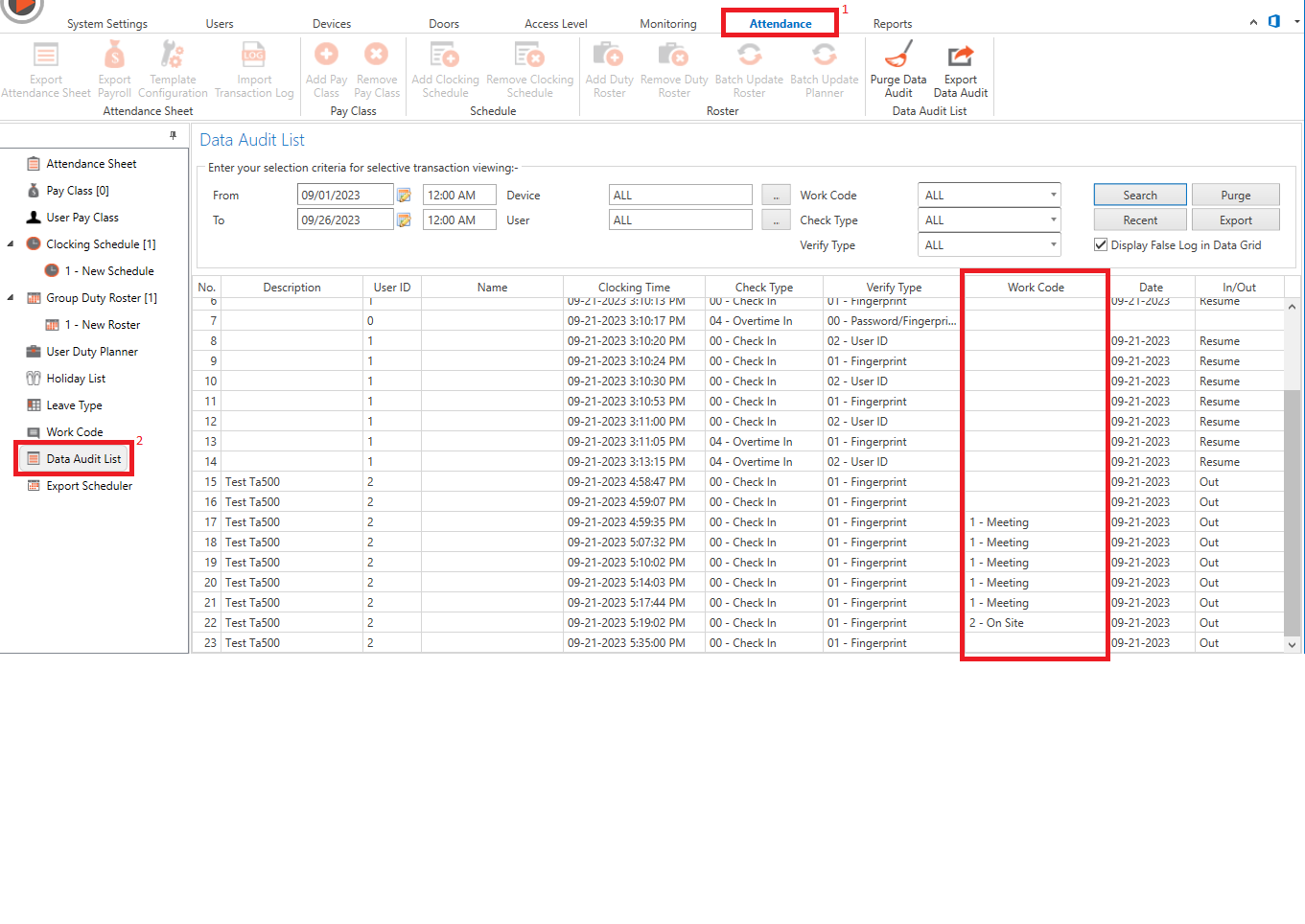

  • You can check if the Work Code has been recorded from our Fingertec software.
