Installation Guide for the New Ingress v6.0.0 MySQL Software with Middleware - BETA Version

We are pleased to announce the Beta release of the new Ingress software v6.0.0 with MySQL and Middleware support, which eliminates the need for separate AWDMS software.

This release is available as a Beta version only, with the official release scheduled soon. The Beta rollout offers an alternative to the previous setup using Ingress with AWDMS middleware.

Important Note: Existing users currently operating Ingress with AWDMS are advised to wait for the official release before transitioning, to ensure full compatibility and support.



HARDWARE REQUIREMENT
(Compulsory for the latest device models: Face ID 5, Face ID 6, Kadex+, etc.)

  • Operating System: Windows 10, Windows 11, Windows Server 2016 or equivalent

  • Processor: Intel i5, Intel i7 or higher

  • Memory: Minimum 8GB RAM; 16GB RAM recommended for optimal performance

  • Hard Disk: 250GB – 500GB (SSD recommended)

Note: RAM should be increased if heavy processing is expected, especially when connecting a higher number of devices and running multiple software applications on the server.



SOFTWARE INSTALLATION STEPS


Software Installer :

You can download the Ingress MySQL V6.0.0.19 Beta Version from the links below:



Ingress Server:

https://s3.us-east-1.amazonaws.com/files.fingertec.com/Software+Releases/Ingress/2025/6.0.0.19/Ingress+Server+(MySQL).zip



Ingress Client:

https://s3.us-east-1.amazonaws.com/files.fingertec.com/Software+Releases/Ingress/2025/6.0.0.19/Ingress+(MySQL).zip



Extract the .ZIP file and run setup.exe as administrator

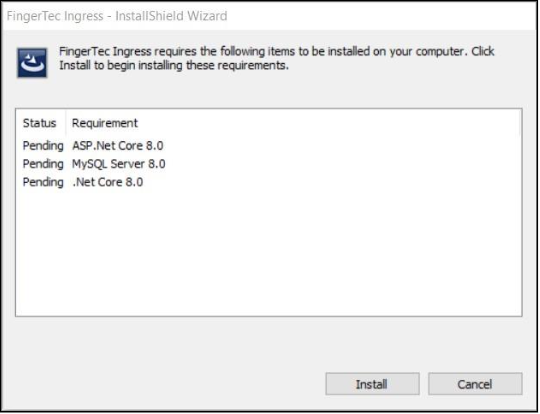

Before installing Ingress, ensure the following components are fully installed and configured on your system:



  • ASP.NET Core 8.0 Runtime

  • .NET Core 8.0 Runtime

  • MySQL Server 8.0



Click Install to begin installing these prerequisites automatically.



Screenshot_2

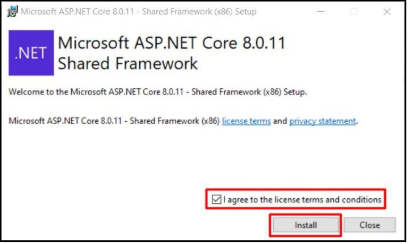

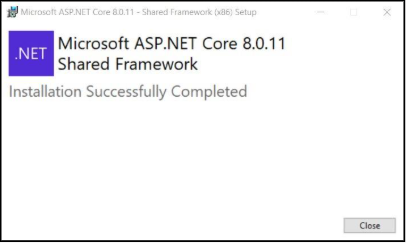

Installation of ASP.Net Core 8.0.11 Runtime

Screenshot_3

Screenshot_4

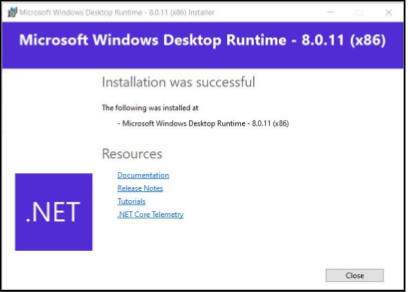

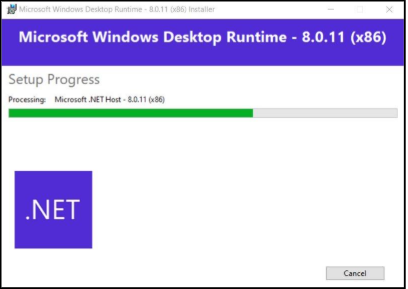

Installation of .Net Core 8.0.11 Runtime

Screenshot_1

Screenshot_2

  1. Installation of MySQL 8.0.37

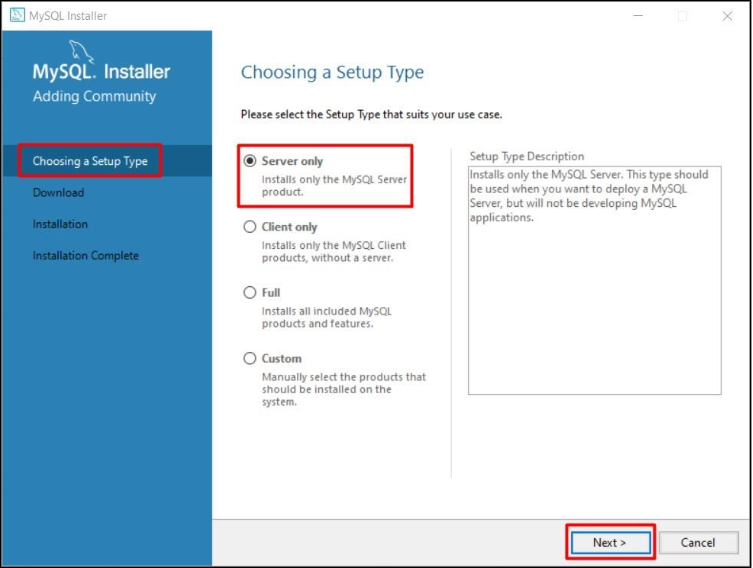

Choosing a Setup Type - Select Server only and click Next

Screenshot_5

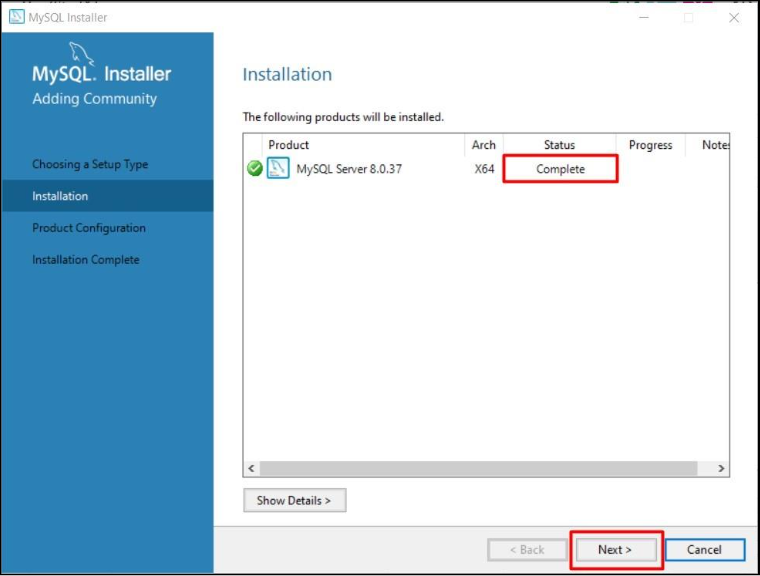

Installation - Ready to Install and click Execute. Once completed, click Next

Screenshot_6



Screenshot_7

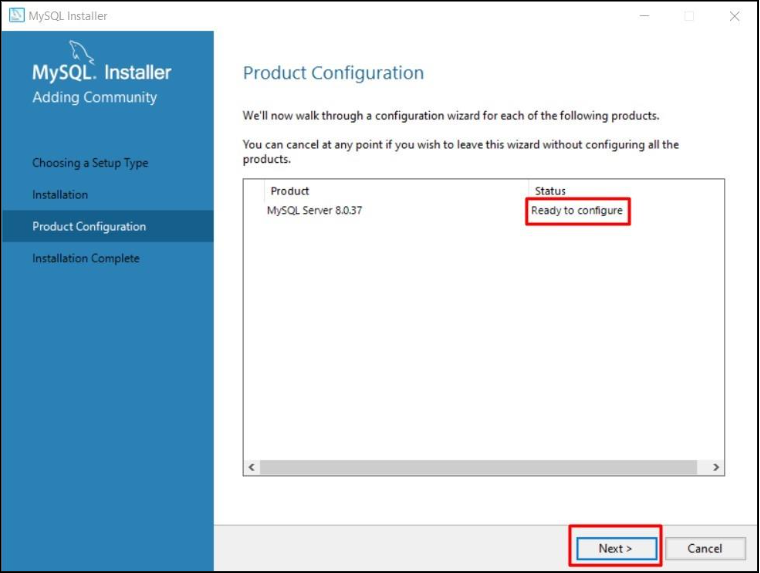

Product Configuration – Confirm the Ready to configure status and click Next

Screenshot_8

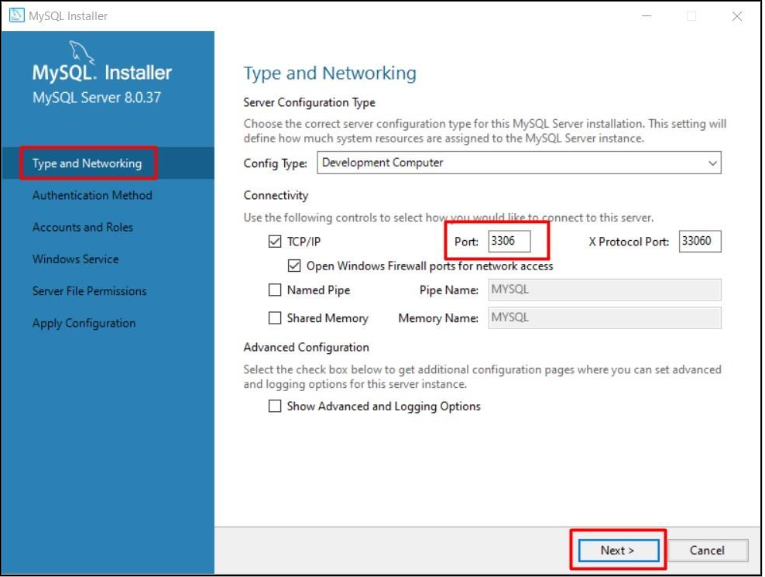

Type and Networking - Leave default (TCP/IP and Port: 3306)

Screenshot_9

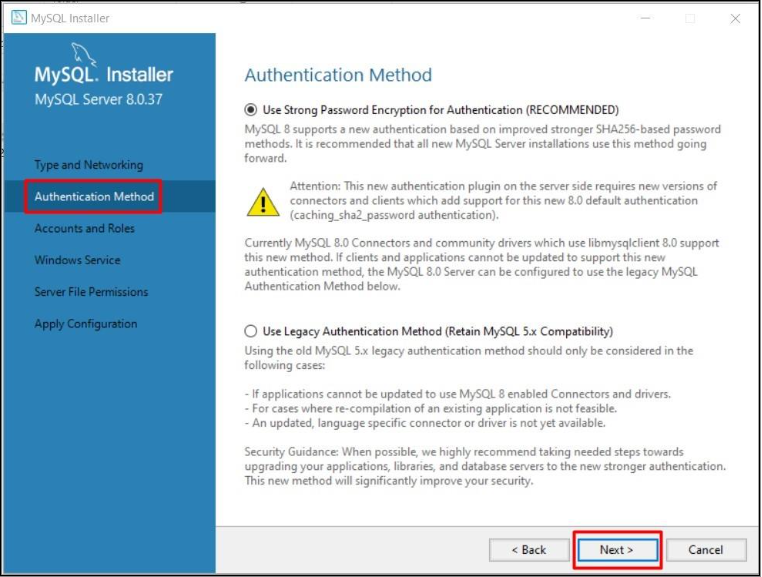

Authentication Method - Select Use Strong Password Encryption for Authentication and click Next

Screenshot_10

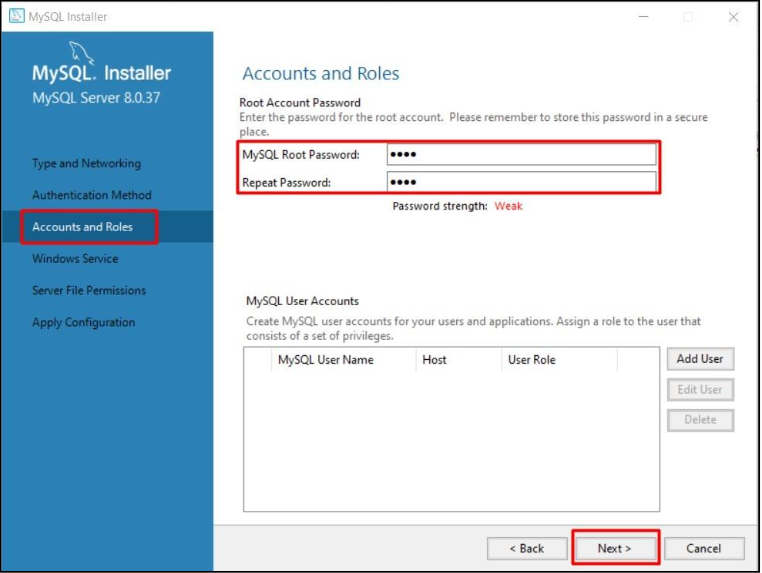

Accounts and Roles - Enter the password for the root account and click Next

Note: We strongly advise users to set "root" as the password to avoid any issues in case the password is forgotten.

Screenshot_11

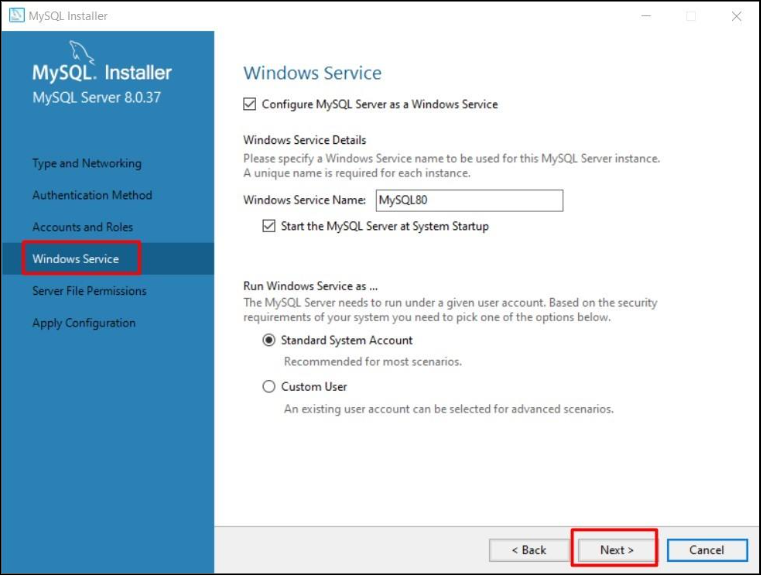

Windows Service - Click Next

Screenshot_12

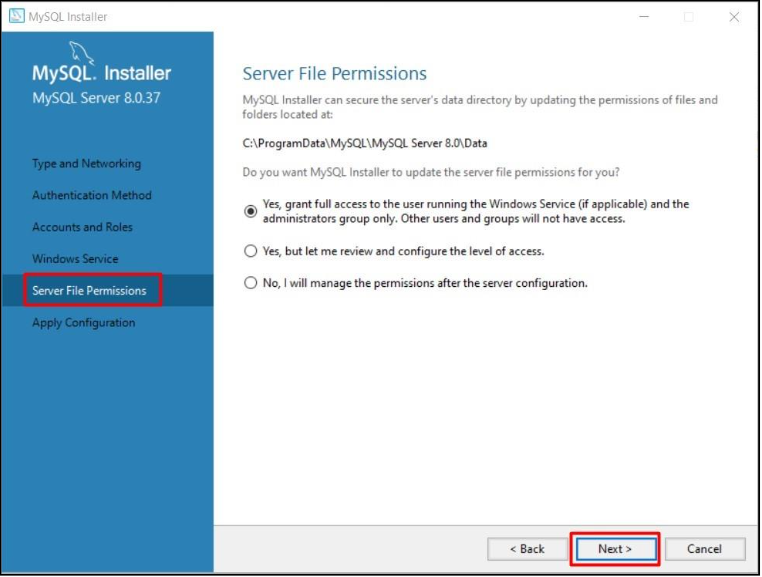

Server File Permissions - Choose grant full access to the user running Windows Service (if applicable) and the administrator group only, then click Next.

Screenshot_13

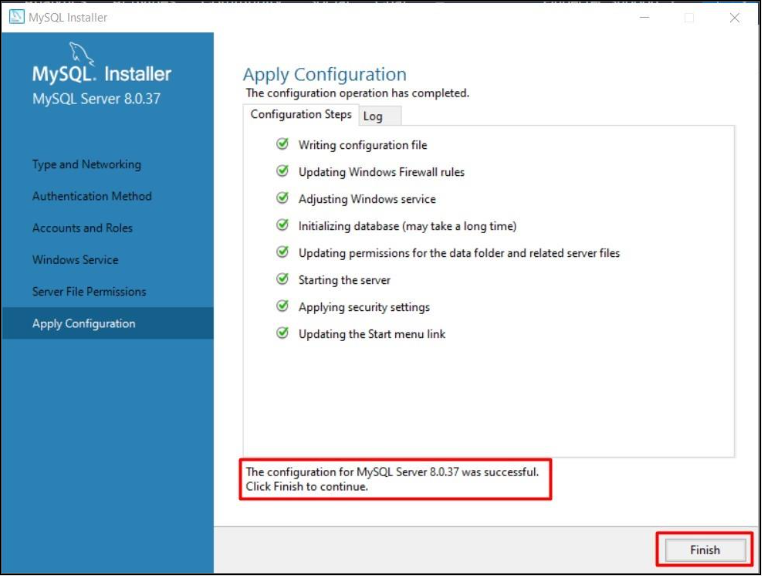

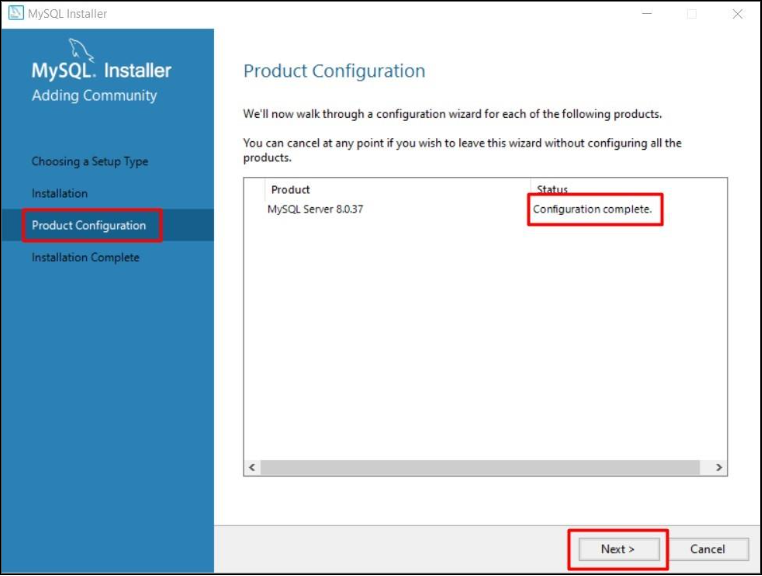

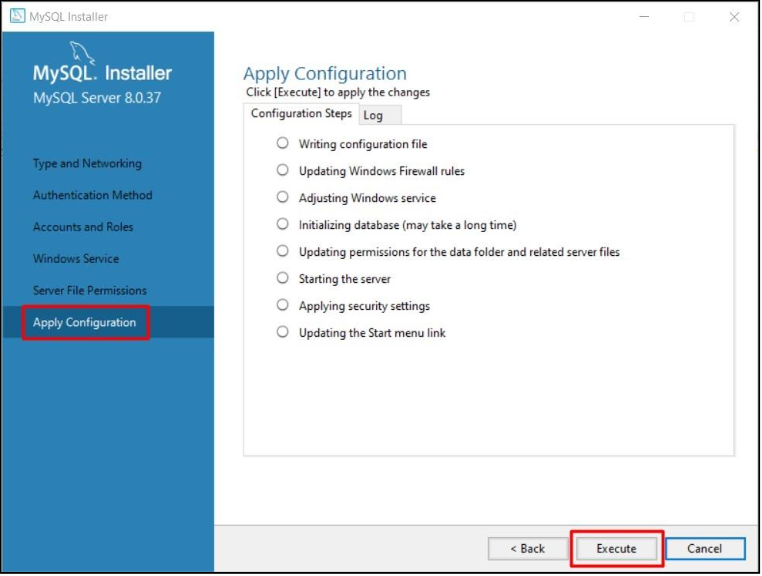

Apply Configuration - Click Execute and Finish

Screenshot_14



Screenshot_15

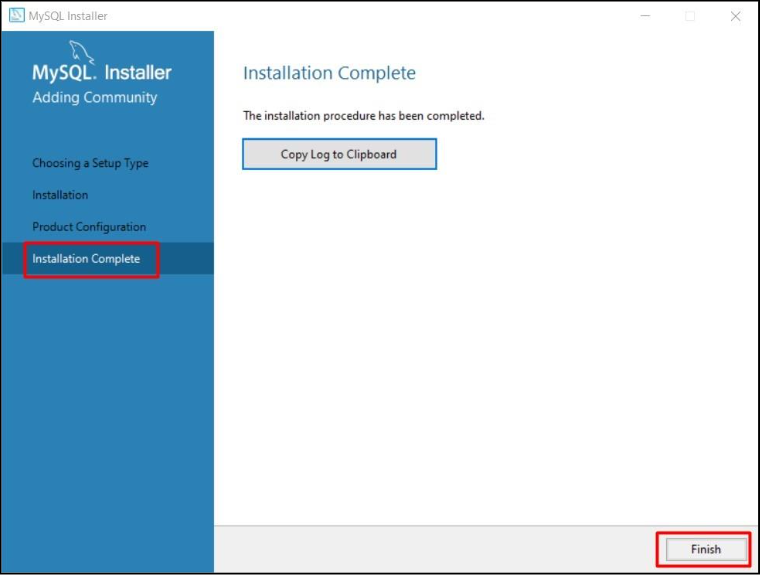

CONFIGURATION COMPLETE - Click Next and Finish

Screenshot_16



Screenshot_17

  1. Ingress Installation

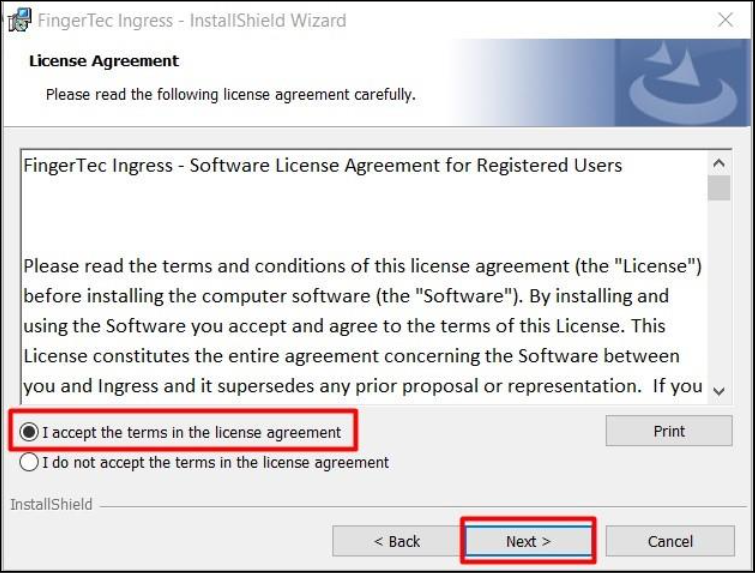

FingerTec Ingress - InstallShield Wizard: Click Next, and tick ‘’I accept the terms in the license agreement’’ then click Next

Screenshot_18



Screenshot_19

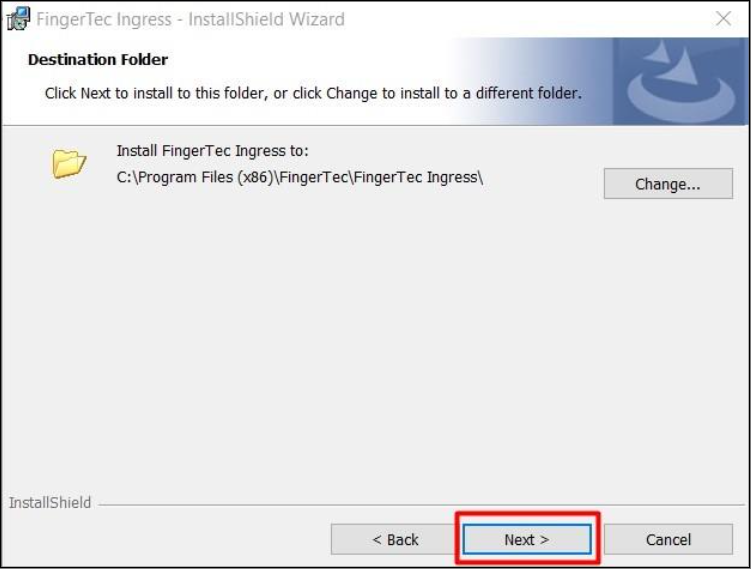

Destination Folder: Click Next to install to this folder, or click Change to install to a different folder then Click Next again

Screenshot_20

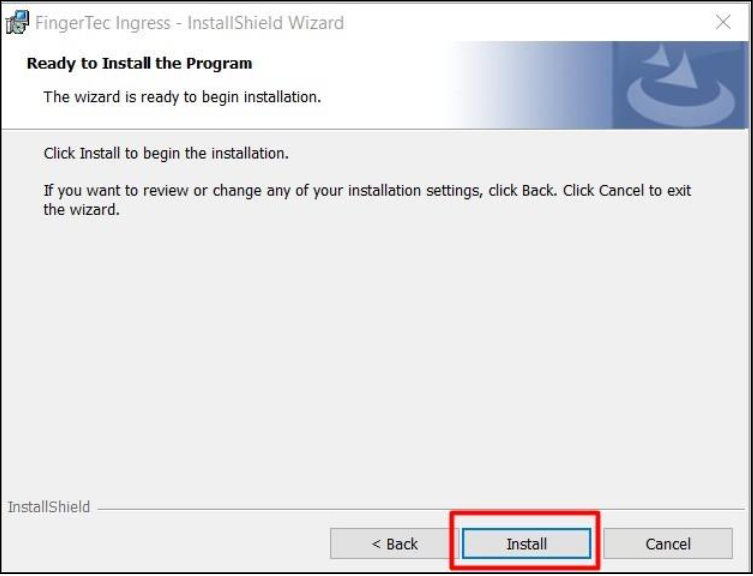

Ready to Install the Program: Click Install to begin the installation

Screenshot_21

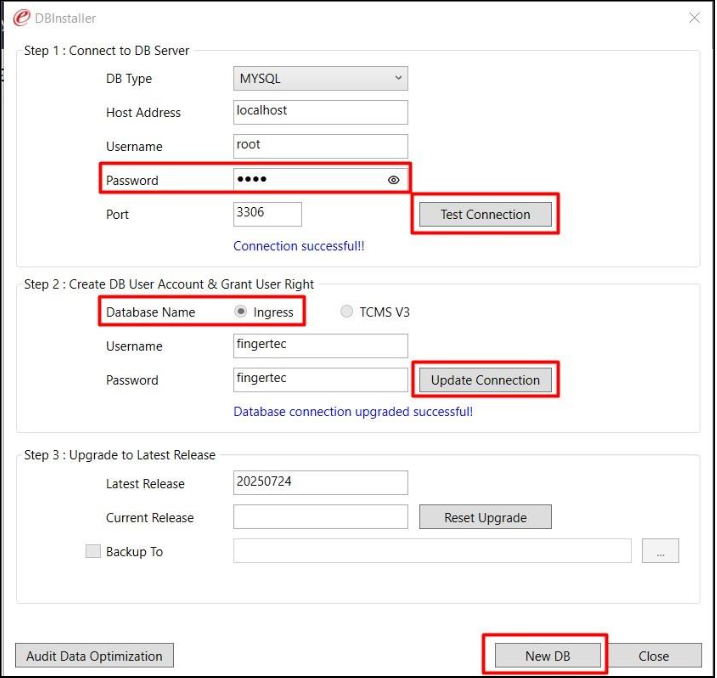

Ingress DB Installer: Enter the MySQL password > Test Connection > Database Name: Ingress > Update Connection > Update Connection > New DB

Screenshot_22

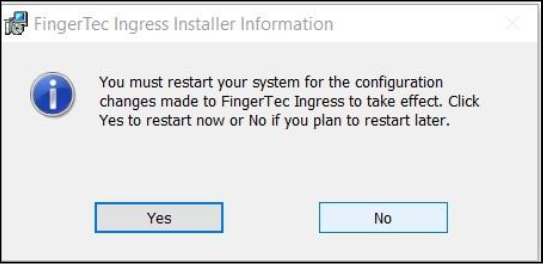

Installation Completed: Click Finish and then Yes to restart the computer

Screenshot_23



Screenshot_24
