Face ID 6 Connect With Slave (Mifare Reader) Using Wiegand Connection Setup
INTRODUCTION
How to setup
Go to ‘MENU’ – ‘COMM’ – ‘Wiegand Setup’ – ‘Wiegand Input’ – ‘Wiegand Format’
Select ‘34Bits’

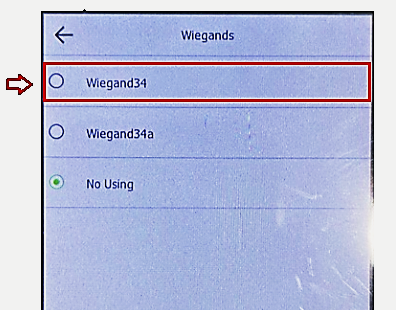

Choose ‘Wiegand34’
After that, go back to the ‘Wiegand Options Menu’

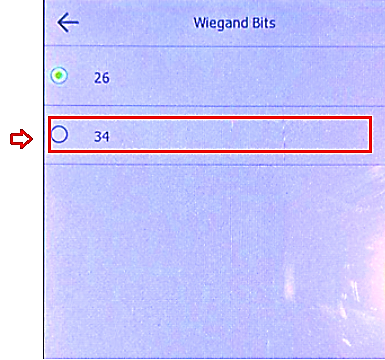

Select ‘Wiegand Bits’
Choose ‘34’
Lastly, go back again to ‘Wiegand Options’

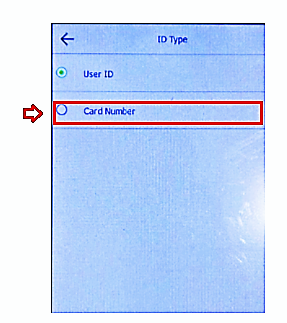

Select ‘ID Type’
Choose ‘Card Number’
