Timeline 100 External Bell Connection and Setup

Timeline 100 External Bell Connection and Setup

External bell is used to alert or remind user of break time, shift change or for safety purposes. It is generally installed in schools, factories, warehouses and other organizations. A schedule bell specifies the start time and duration of one or more instructional periods of a daily pattern.

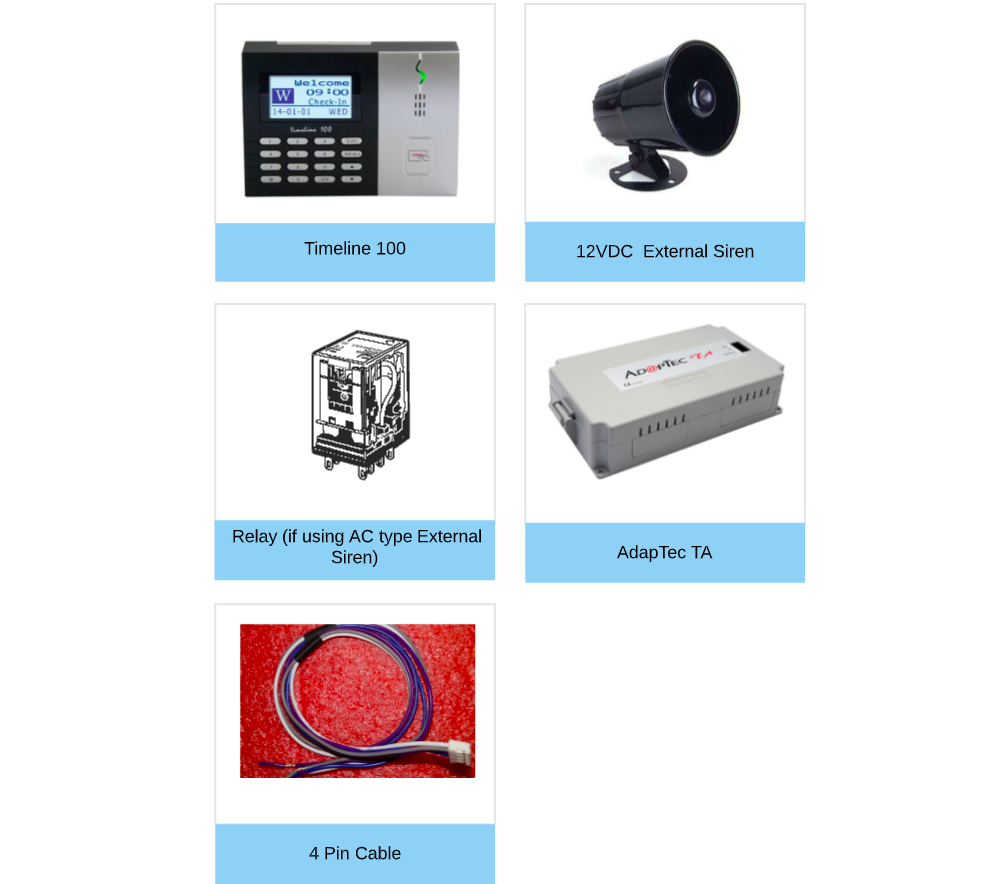

Connect External siren to Timeline 100

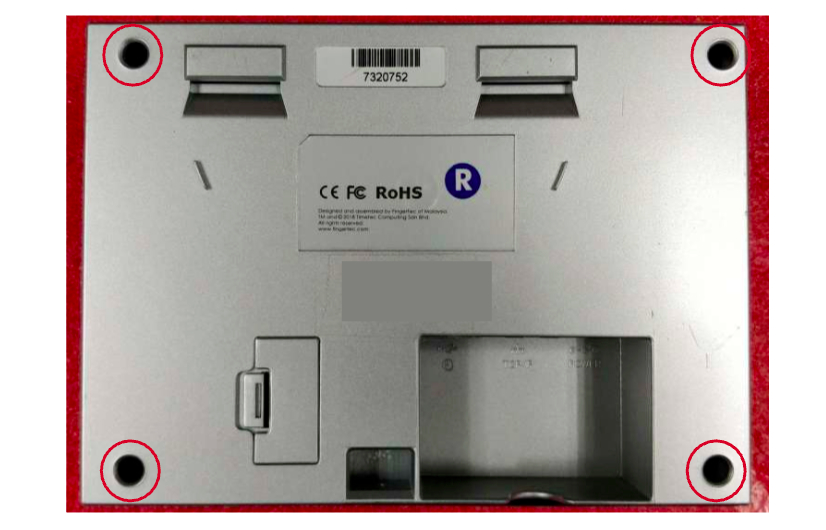

- Open the Timeline 100 back casing screw

-  Connect the cable 4 pin connector to the ‘Alarm’ port from the MCU.

Wiring Diagram

Using 12VDC External Siren

Using AC240 External Siren

Setup Schedule Bell in TA100
Power up the Timeline 100 -> Press MENU -> Select Options

Select Power Mng -> Go to Scheduled Bell -> Configure the day and time to schedule the bell to ring

Set the Schedule time for the day

Then, set the time period for the bell to ring

Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
