R3 and R3c With AdapTec X Installation Wiring Diagrams

Introduction

R3 is a fingerprint reader from FingerTec that caters for door access and time attendance verification. R3 comes with multiple verification methods such as fingerprint, card, and password. For a back-to-back biometrics’ security measure, you can pair R3 with slave fingerprint reader R3c.

In this tip, we will go through the wiring diagram for R3 and R3c with Adaptec X as full door access installation references. FingerTec R3 and R3c door access can be installed with two ways:

1.       Secure Installation

2.       Convenience Installation

Secure Installation operates by R3 sending Wiegand signal to Adaptec X to de-energize the magnetic lock for more secure door access operation.

For Convenience Installation, R3 sends a dry contact signal from NO_COM to Adaptec X EXT SW for a more convenient door access operation.

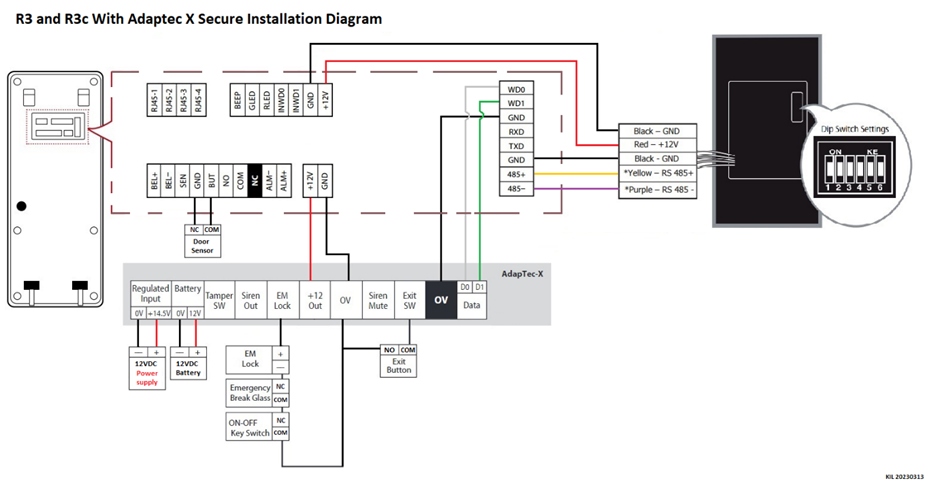

R3 and R3c With Adaptec X Secure Installation Wiring Diagram

​

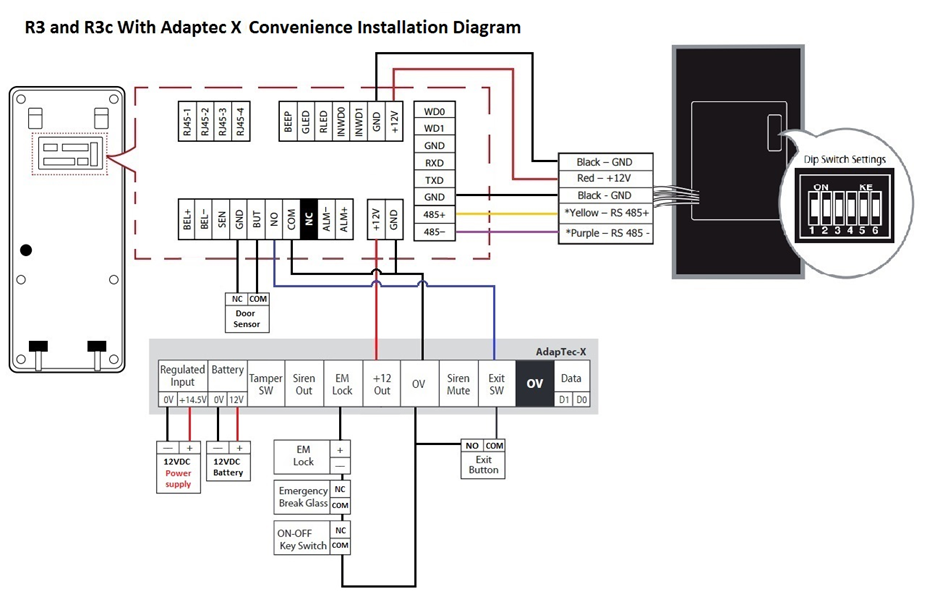

R3 and R3c With Adaptec X Convenience Installation Wiring Diagram

Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
