How to Enable Door Sensor Function For H2i Device
Introduction
For the safety or requirement of an industry, a door always needs to be closed or it will risk intrusion, damage or loss of a product or an environment. For example, the storehouse storing valuable things, a server room where the temperature needs to be maintained, the dust-free rooms, etc. Hence, the assurance of knowing that the room always needs to be closed neatly is mandatory for some premises.
In this article, we will guide you on how to enable the door sensor function for H2i devices, which will alert the user when a door is not closed properly.
Requirement
H2i FingerTec device
Software FingerTec Ingress / TCMS V3
Magnetic contact
Wiring Diagram
Process
Open FingerTec software Ingress / TCMS V3 > Add Device
Go to tab ‘Doors’ > Add Door > Add device to the selected door
Go back to ‘New Door’ > Click ‘Edit’ at the bottom right corner

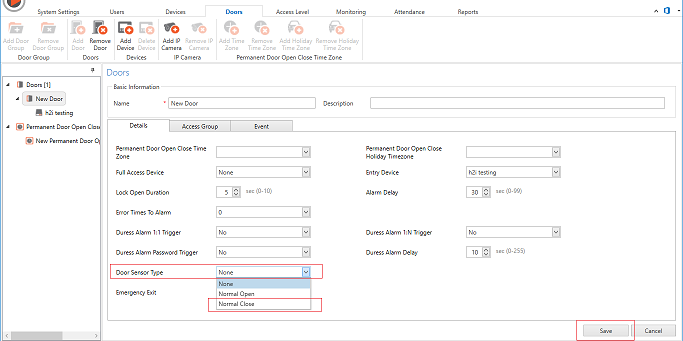

Go to ‘Door Sensor Type’ > Select ‘Normal Close’ > ‘Save’
Please make sure to synchronize the setup at the end of the process.
How it Works

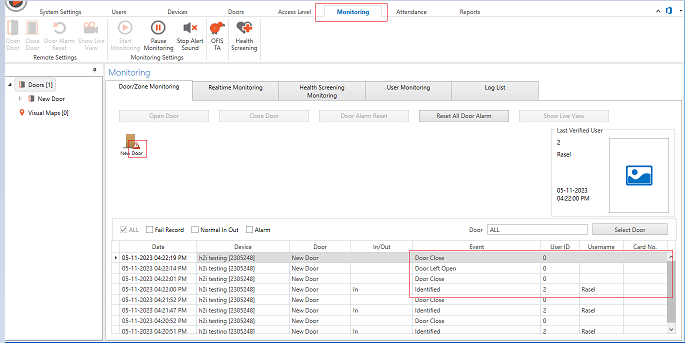

From the software you can go to ‘Monitoring’ to see the process
At the ‘Event’ column you can see the activity sent by the device for magnetic contact sensor
The alarm will trigger when the door is left open exceeding the time limit that has been set
Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
