How To Connect Smart AC & Face ID5 device with TimeTec TA

How To Connect Smart AC & Face ID5 device with TimeTec TA

Introduction
The Smart AC1/TD & Face ID5 is a visible light facial recognition access control device that withstands direct strong light exposure. This product supports multiple verification methods including Face, Fingerprint, Palm & Password. It is embedded with a Face-with-Mask reading and fever detection feature that can examine a person’s body temperature even with a face mask on. The extra wide angle recognition with up to 2 meters recognition distance made this device one of the fastest and contactless verification methods that significantly reduces the potential risk of cross-contamination in premises. In this article, we will guide you on how to add the Smart AC1/TD into TimeTec TA, the cloud-based time and attendance management solution. (applicable to Face ID5 as well).

Process
1. Adding devices to TimeTec TA

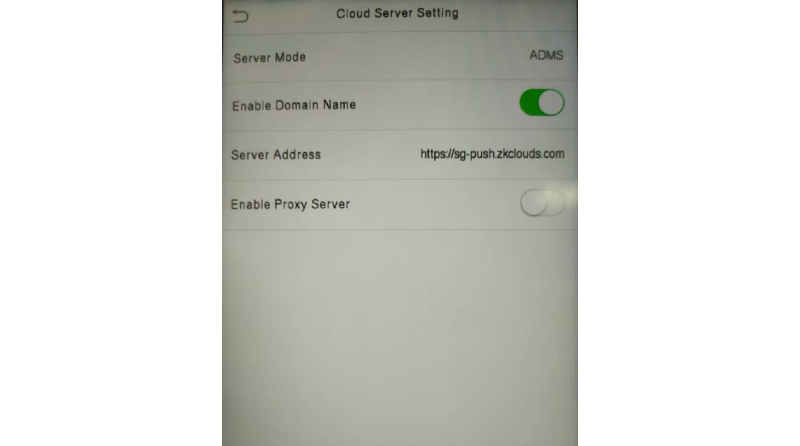

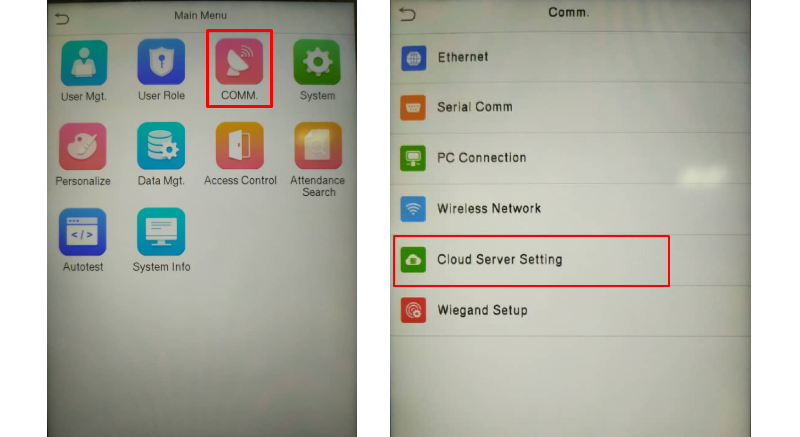

a) Configure the device Server address. Go to Menu > Comm > Cloud Server Setting and add the server address address

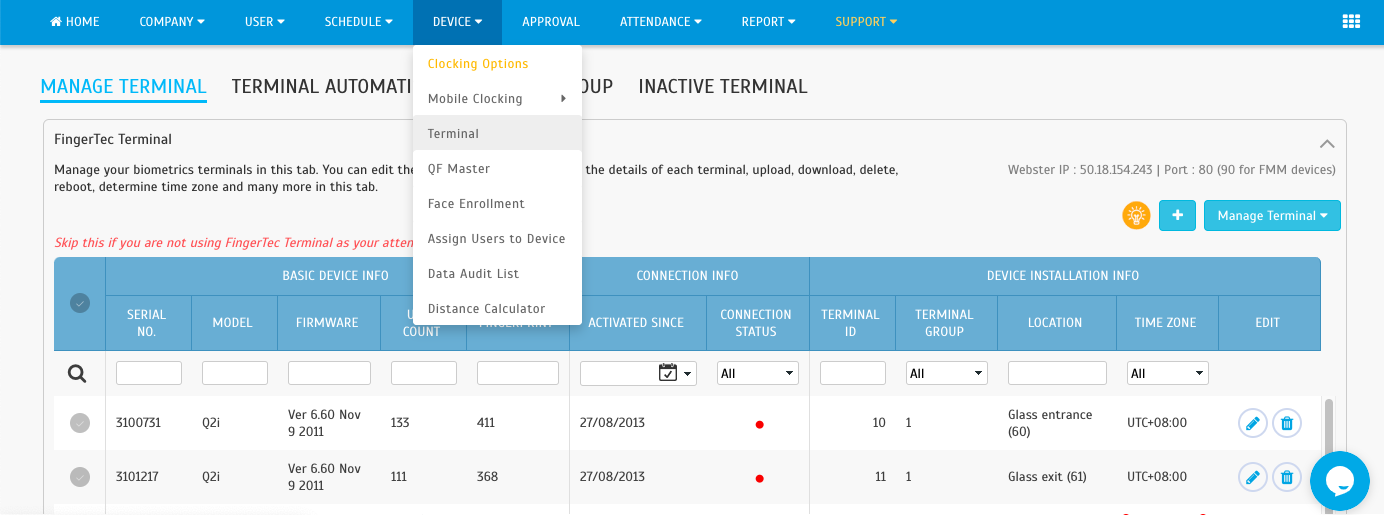

b) Go to TimeTec TA > Terminal

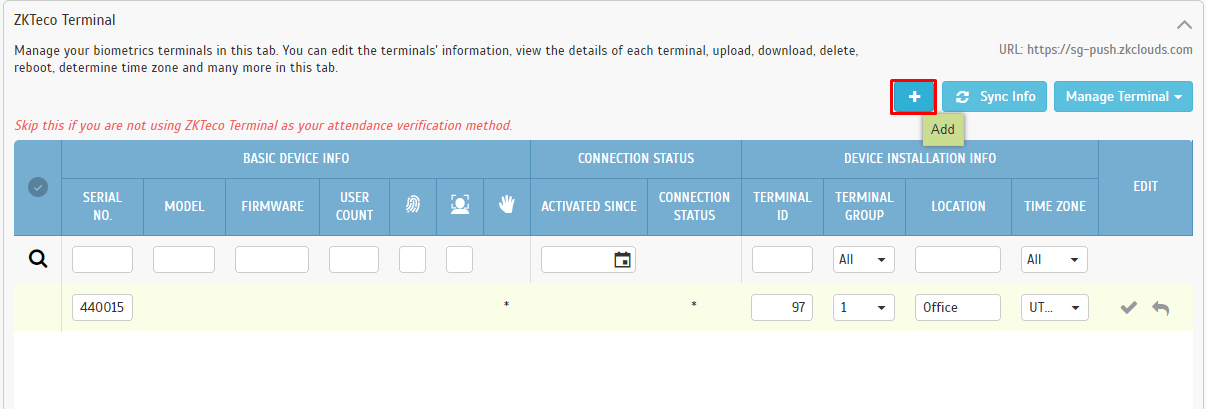

c) Go to ZKTeco Terminal and click on “Add” and fill in device information

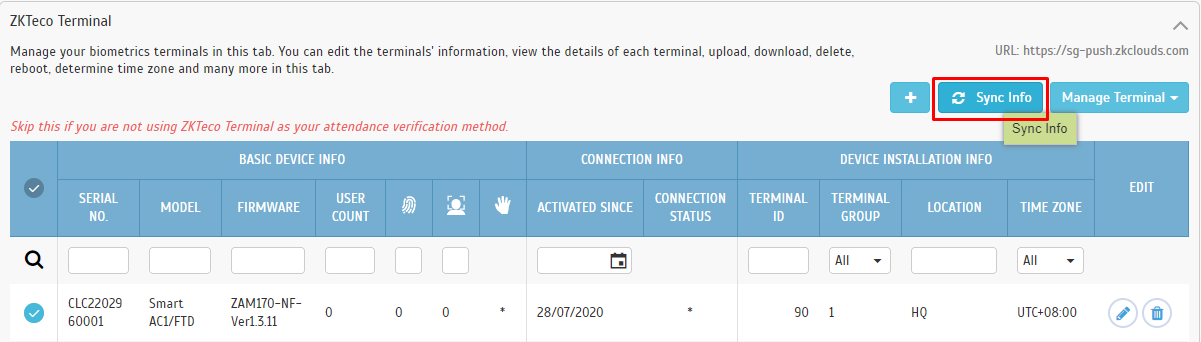

d) Select the device and click on “Sync Info” to update the device data.

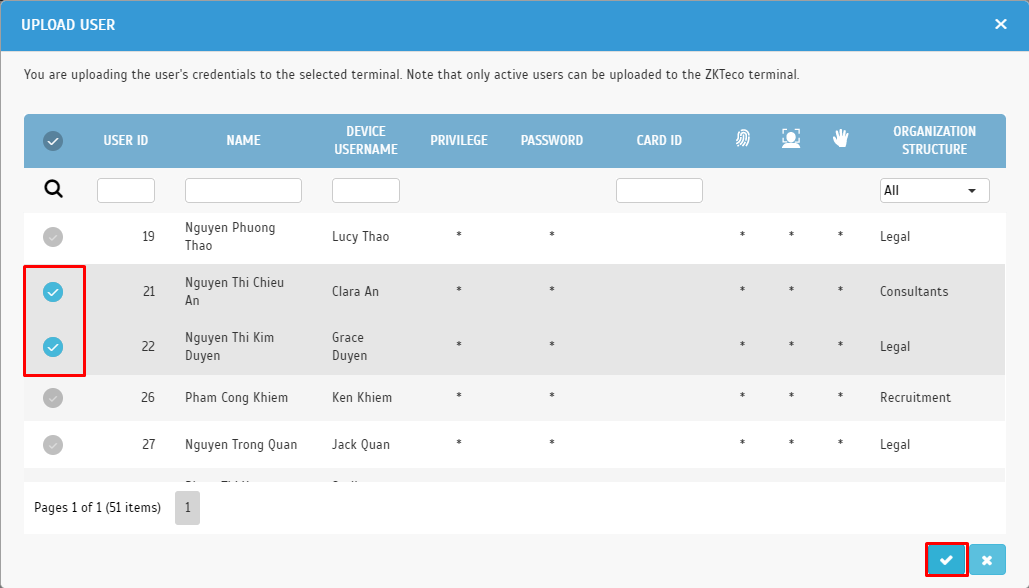

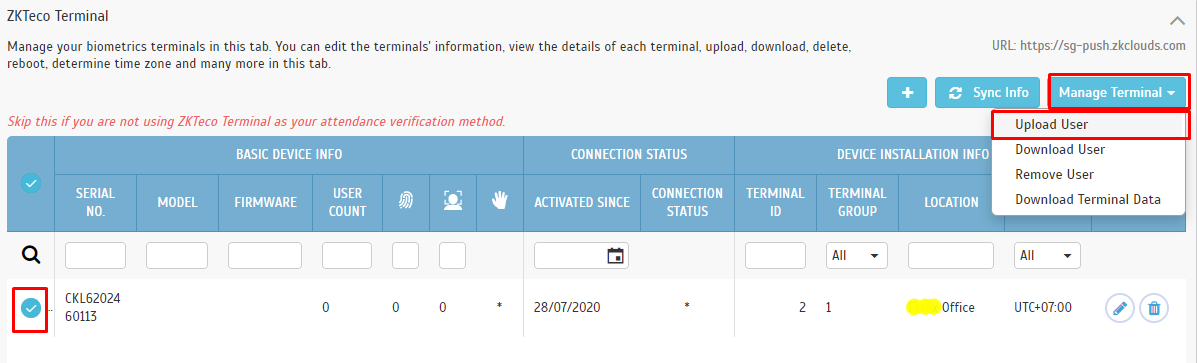

2. To upload user into the device, select device > Manage Terminal >  upload User to Device, then select the users.

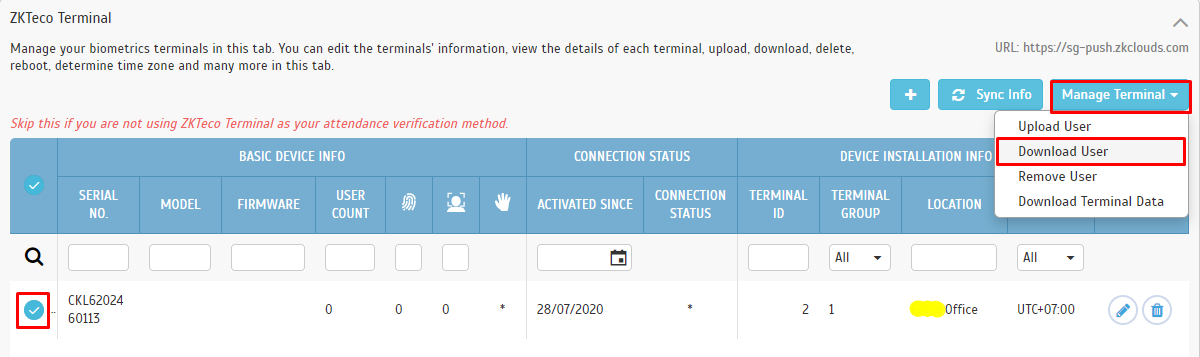

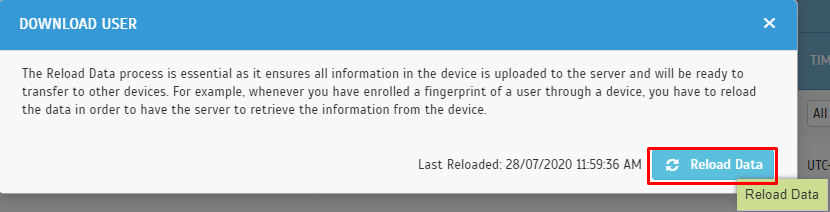

3. Next, sync the device. Select device > Manage terminal >  download user to TimeTec TA > “Reload Data”




Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
