Introduction



WiFi connectivity is widely used today to connect users with the latest technology and updates. It provides greater mobility, allowing users to connect to a network or the Internet while moving freely within the space. For organizations choosing the best mobile connectivity options, WiFi is often the preferred choice.



At FingerTec, we offer a variety of WiFi-enabled devices to meet customer needs. Among the devices supported by WiFi are the Face ID 2 and Face ID X.



Customers have the option to purchase the Face ID 2 and Face ID X with or without the WiFi function. For those who have already purchased these devices without WiFi support, here are the steps you can follow to carry out the WiFi modification, if necessary.



WiFi modification for Face ID 2 and Face ID X requires a WiFi Module and a WiFi Antenna. If you need to perform this customization, you may send us an inquiry at www.fingertec.com or contact your reseller for further assistance.





Figure 1: WiFi Module with Antenna



Steps:

1) Unscrew the Back Cover

Unscrew the back cover and open it carefully. Take caution when disconnecting the Flexible Cable. The I/O Module is located at the back cover, while the Flexible Ribbon Cable is located at the MCU.

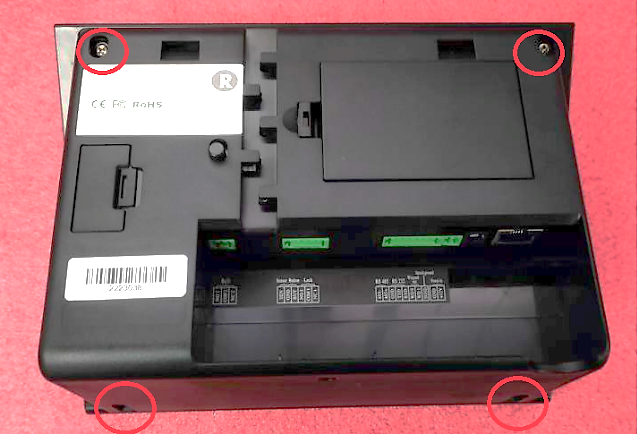

Figure 2: Location of screws on the back cover


2) Disconnect the following cables from the MCU:

  • I/O Cable

  • RLED Cable

  • RFID Cable

  • Fingerprint Scanner Cable

  • LCD Cable

  • LED Cable

  • Touch Panel Cable







Figure 3: Disconnected cables from the MCU

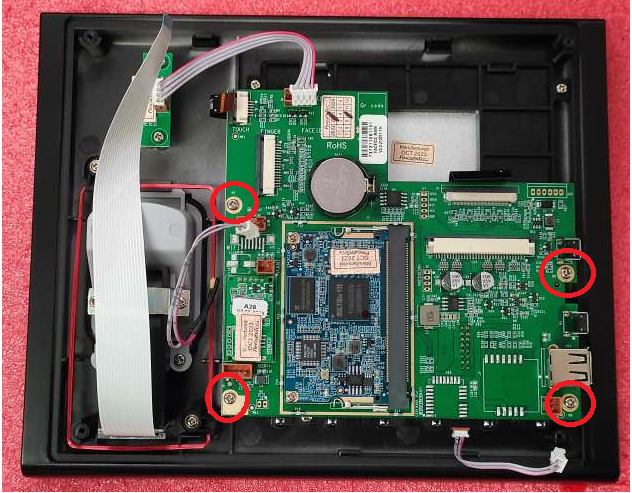

3) Unscrew the MCU from the front cover to take it out.







4) Solder the WiFi Module onto the MCU and connect the WiFi Antenna to the WiFi Module.

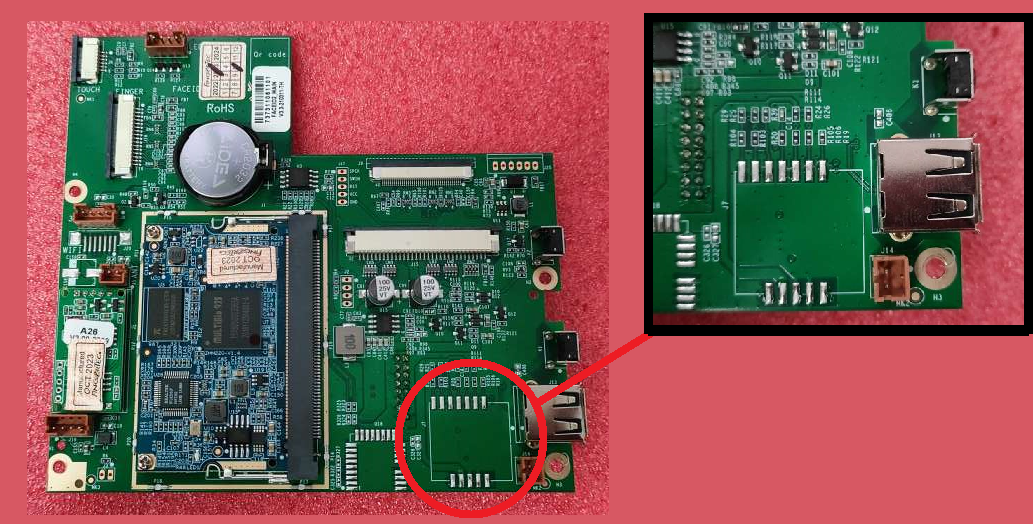

Figure 4: Location of the WiFi Module on the MCU

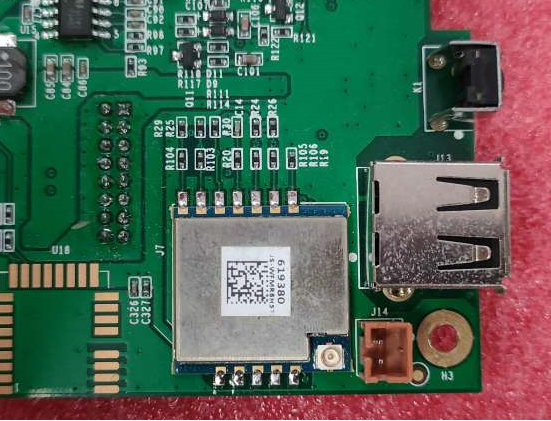

Figure 5: WiFi Module soldered onto the MCU

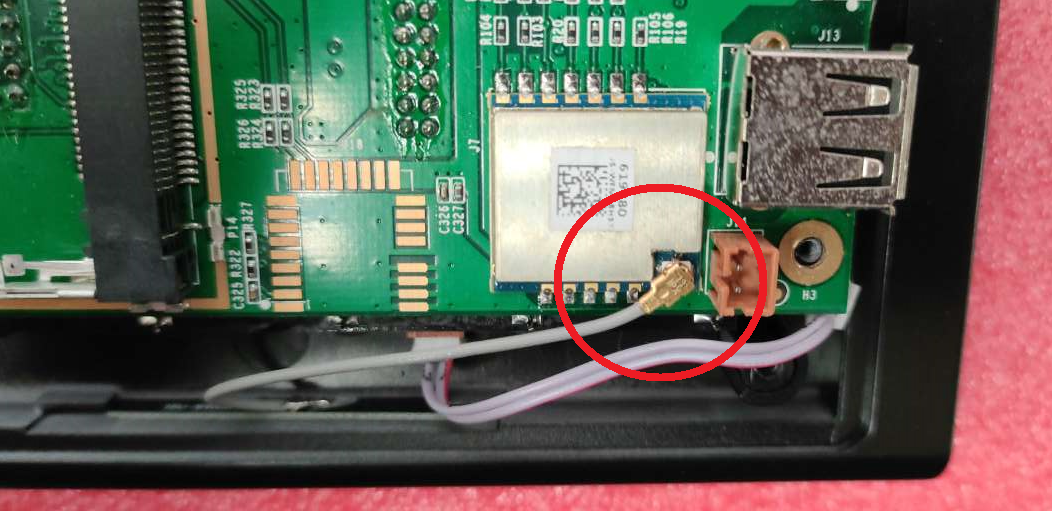

Figure 6: WiFi Antenna connected to the module



5) Place the MCU board back into the front casing and screw it securely. Connect the WiFi Antenna to the WiFi Module.

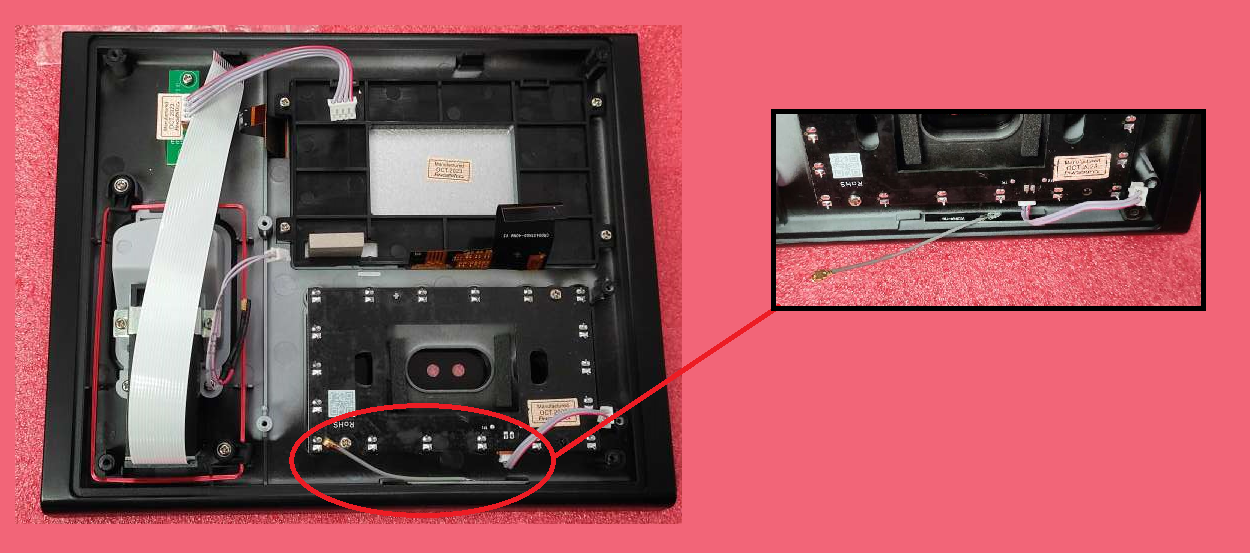

Figure 7: WIFI Athena and WIFI Module been connected.





6) Reverse the steps to reassemble the MCU, reconnecting all cables and securing all parts.


7) Power up the device and connect the Face ID 2 or Face ID X to a computer using an Ethernet cable for a software update.
*Please email us for update tools



8) Configure the Face ID 2 or Face ID X to connect to WiFi:
Menu > COMM > Wireless Network > Wi-Fi (ON) > Select the Wi-Fi network you want to connect to.
