Changing the Keylock 7700 Position

Changing the Keylock 7700 Position

Here are some tips on how you change the position of your Keylock 7700  either from left to the right or right to the left).

Step 1:

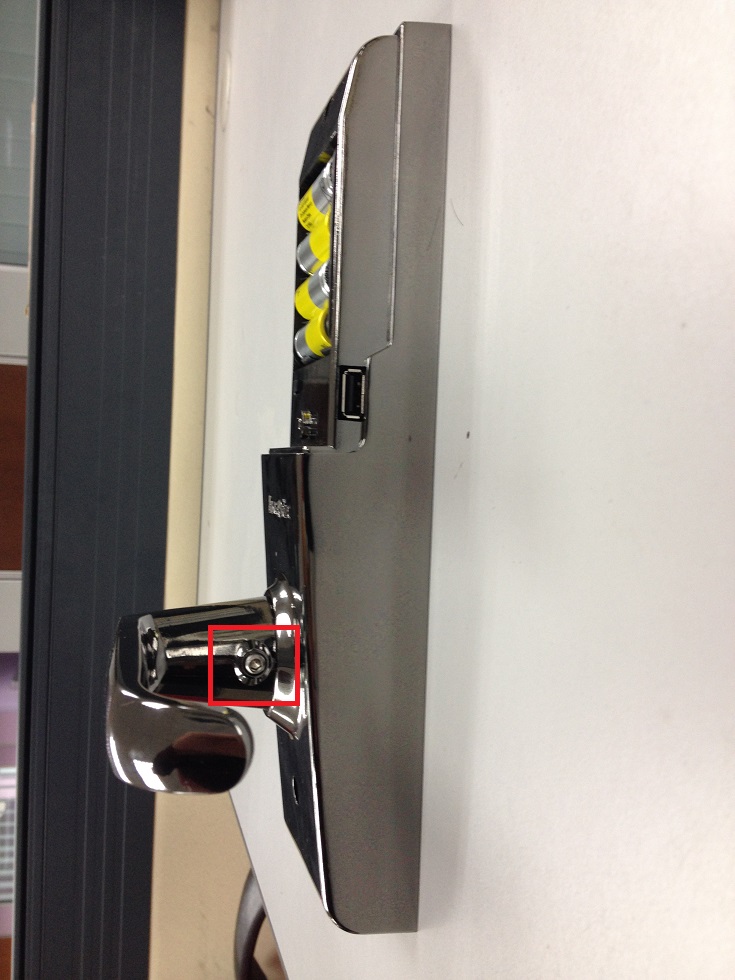

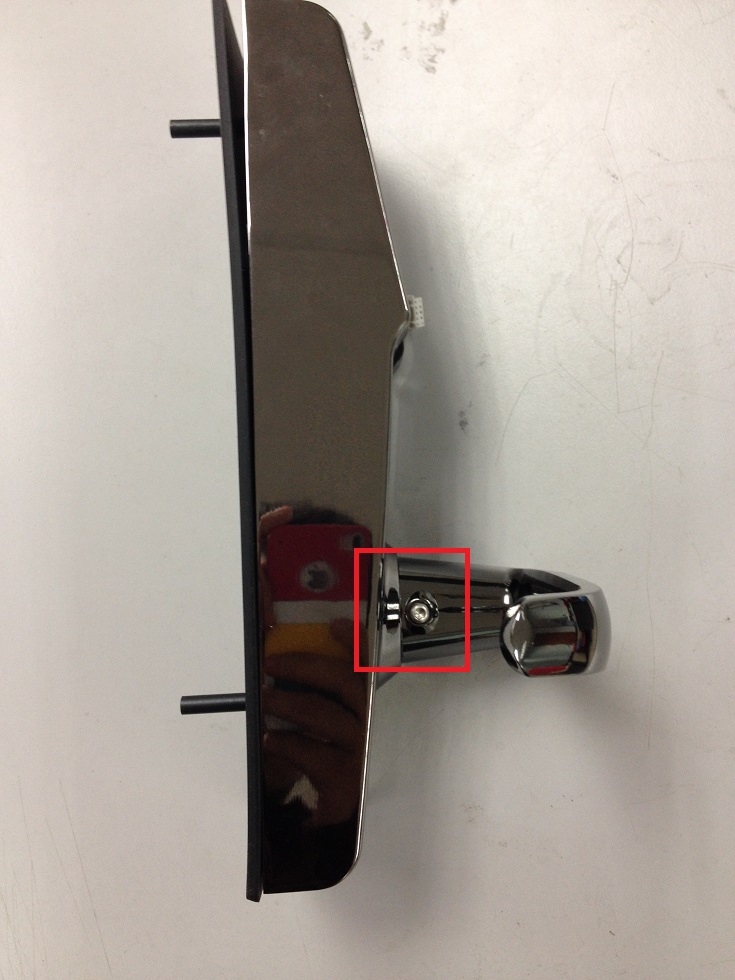

Change the handle position for the front side.

Step 2:

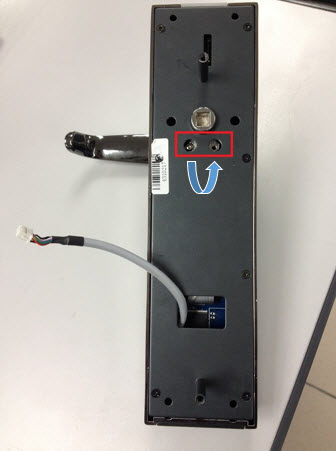

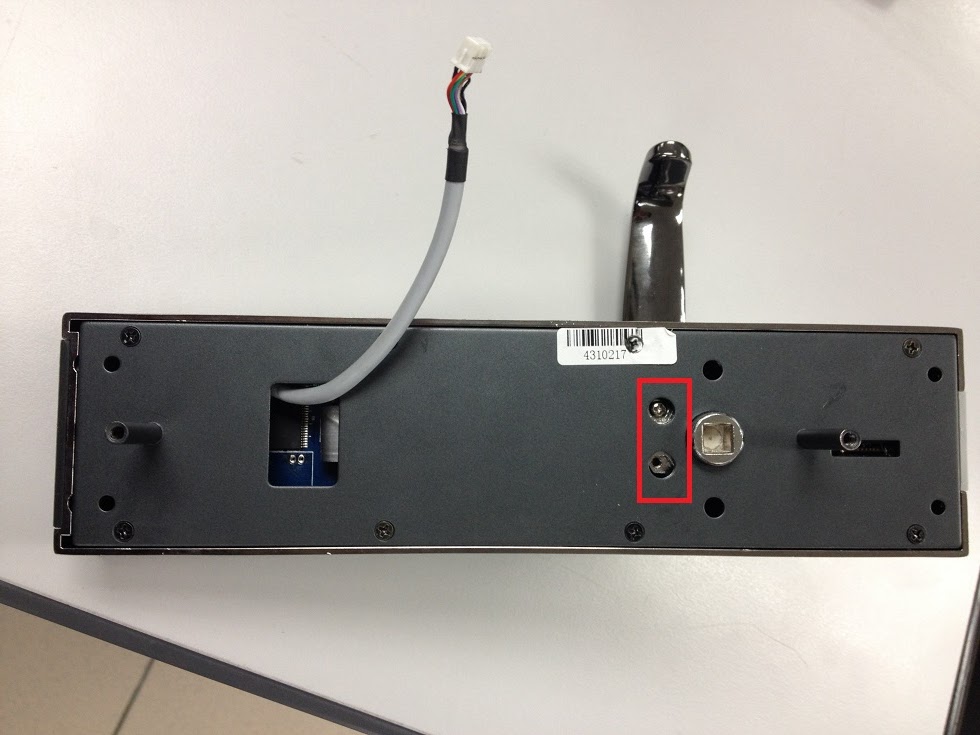

Change the handle position for back side.
Step 3:

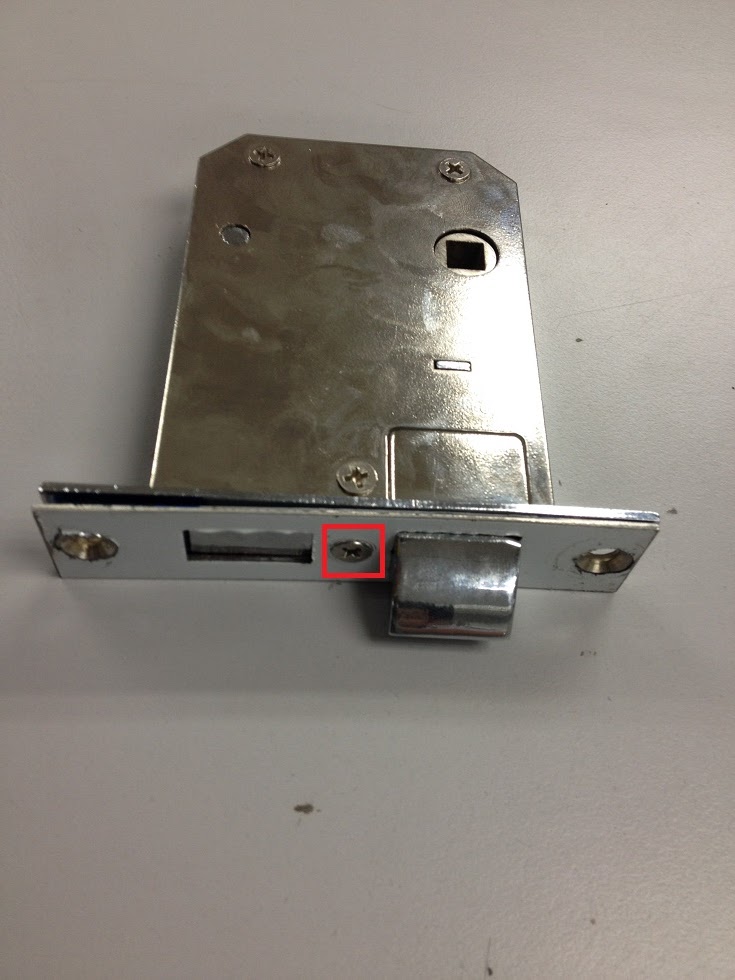

Change the latch position.

Step 4:
Switch the screw to the opposite position.

Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at, we will update it as soon as possible.
